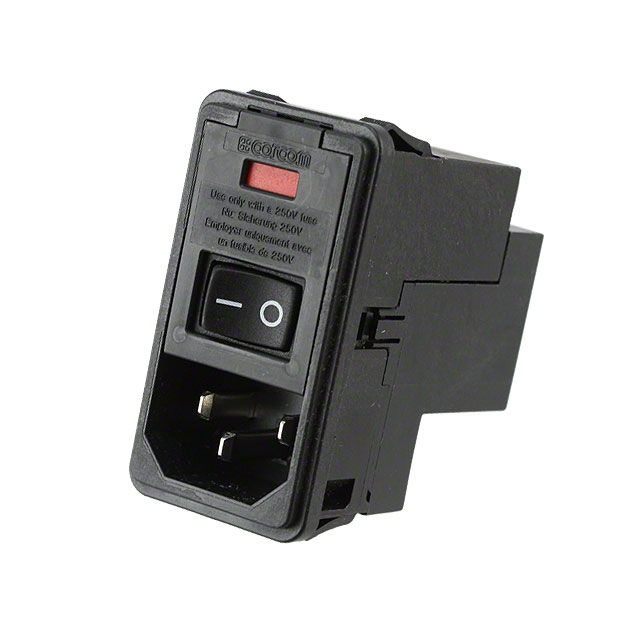

PS0S0DSX0

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PS0S0DSX0	PS0S0D Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	6 - 10 A
Current Rating - Filter	10 A	6 - 10 A
Features	-	Shielded, Interconnection Block
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions	Variable Size	Variable Size
Panel Thickness [Max]	2.9 mm	2.9 mm
Panel Thickness [Max]	0.114 in	0.114 in
Panel Thickness [Min]	0.79 mm	0.79 mm
Panel Thickness [Min]	0.031 "	0.031 "
Switch Features	Switch On-Off	Switch On-Off
Termination	0.187 "	0.187 "
Termination	4.7 mm	4.7 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Termination	Termination	Termination	Features	Connector Type	Connector Style	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions	Current Rating - Appliance Inlet	Switch Features	Current Rating - Filter	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Fuse Holder, Drawer	Mounting Type	Filter Type	Approval Agency
TE Connectivity Corcom Filters PS0S0DS6A	0.187 "	4.7 mm	Quick Connect	Shielded	Receptacle, Male Blades - Module	IEC 320-C14	120 VAC	Variable Size	6 A	Switch On-Off	6 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Fuse Holder, Twin Fused	Panel Mount, Snap-In	Filtered (EMI, RFI) - Commercial	CSA, UL, VDE
TE Connectivity Corcom Filters PS0S0DBX0	0.187 "	4.7 mm	Quick Connect	Interconnection Block	Receptacle, Male Blades - Module	IEC 320-C14	120 VAC	Variable Size	10 A	Switch On-Off	10 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Fuse Holder, Twin Fused	Panel Mount, Snap-In	Filtered (EMI, RFI) - Commercial	CSA, UL, VDE
TE Connectivity Corcom Filters PS0S0DSX0	0.187 "	4.7 mm	Quick Connect		Receptacle, Male Blades - Module	IEC 320-C14	120 VAC	Variable Size	10 A	Switch On-Off	10 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Fuse Holder, Twin Fused	Panel Mount, Snap-In	Filtered (EMI, RFI) - Commercial	CSA, UL, VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
