152226-0100-GB
Active3M

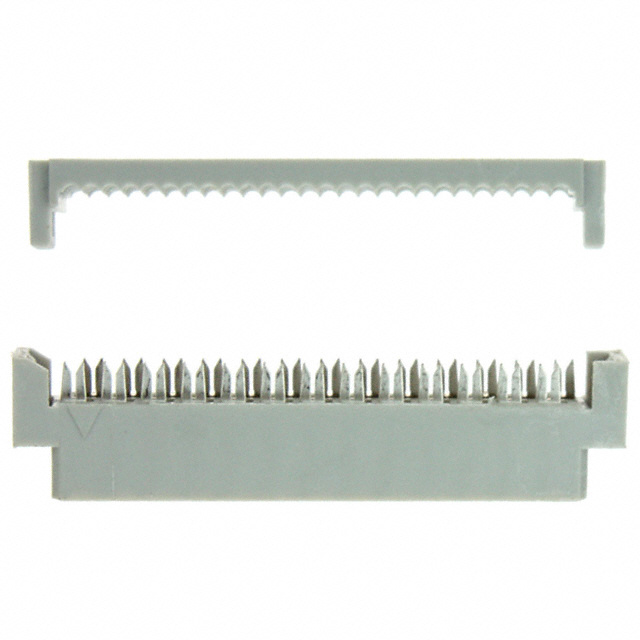

CONN RCPT 26POS IDC 28AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
152226-0100-GB
Active3M
CONN RCPT 26POS IDC 28AWG GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 152226-0100-GB | 152226 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Gray | Gray |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.38 - 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 15 - 30 Áin |
| Contact Type | Female Socket | Female Socket |
| Features | Feed Through | Feed Through, Strain Relief, Polarizing Key |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 26 | 26 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 0.079 in | 0.079 in |
| Pitch [x] | 2 mm | 2 mm |
| Row Spacing | 2 mm | 2 mm |
| Row Spacing | 0.079 in | 0.079 in |
| Wire Gauge | 28 AWG | 28 AWG |
| Wire Type | Ribbon Cable | Ribbon Cable |
152226 Series
CONN RCPT 26POS IDC 28AWG GOLD
| Part | Number of Rows | Row Spacing | Row Spacing | Connector Type | Color | Cable Termination | Number of Positions | Features | Contact Finish | Mounting Type | Wire Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2 | 2 mm | 0.079 in | Receptacle | Gray | IDC | 26 | Feed Through, Strain Relief | Gold | Free Hanging (In-Line) | Ribbon Cable | Female Socket | 0.76 Ám | 30 Áin | 0.079 in | 2 mm | 28 AWG | |
2 | 2 mm | 0.079 in | Receptacle | Gray | IDC | 26 | Feed Through, Polarizing Key | Gold | Free Hanging (In-Line) | Ribbon Cable | Female Socket | 0.38 µm | 15 µin | 0.079 in | 2 mm | 28 AWG | |
2 | 2 mm | 0.079 in | Receptacle | Gray | IDC | 26 | Feed Through, Polarizing Key, Strain Relief | Gold | Free Hanging (In-Line) | Ribbon Cable | Female Socket | 0.76 Ám | 30 Áin | 0.079 in | 2 mm | 28 AWG | |
2 | 2 mm | 0.079 in | Receptacle | Gray | IDC | 26 | Feed Through, Polarizing Key | Gold | Free Hanging (In-Line) | Ribbon Cable | Female Socket | 0.76 Ám | 30 Áin | 0.079 in | 2 mm | 28 AWG | |
2 | 2 mm | 0.079 in | Receptacle | Gray | IDC | 26 | Feed Through | Gold | Free Hanging (In-Line) | Ribbon Cable | Female Socket | 0.76 Ám | 30 Áin | 0.079 in | 2 mm | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.54 | |
| 10 | $ 5.01 | |||
| 25 | $ 4.73 | |||
| 50 | $ 4.62 | |||
| 125 | $ 4.39 | |||
| 250 | $ 4.06 | |||
Description
General part information
152226 Series
26 Position Rectangular Receptacle Connector IDC Gold 28 AWG
