152226-0113-GB

Active

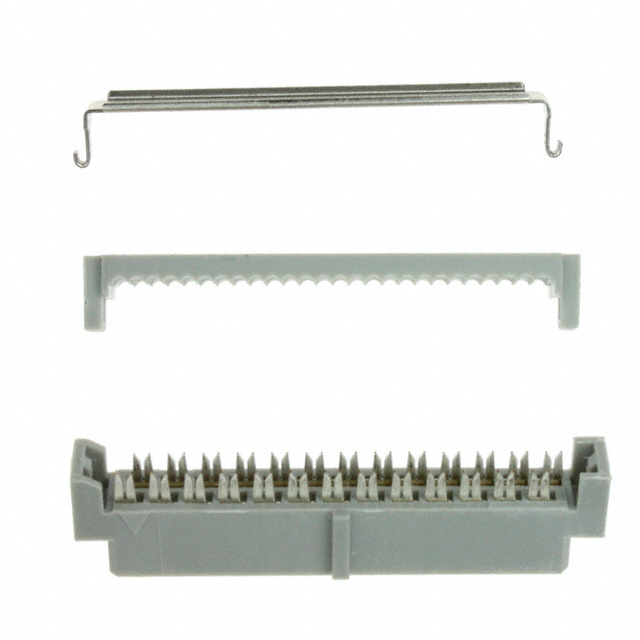

CONN RCPT 26POS IDC 28AWG GOLD

Search across all available documentation for this part.

Active

CONN RCPT 26POS IDC 28AWG GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Rectangular Receptacle Connector IDC Gold 28 AWG

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	152226-0113-GB	152226 Series

Cable Termination	IDC	IDC
Color	Gray	Gray
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness	30 Áin	15 - 30 Áin
Contact Type	Female Socket	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief	Feed Through, Strain Relief, Polarizing Key
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	26	26
Number of Rows	2	2
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Row Spacing	2 mm	2 mm
Row Spacing	0.079 in	0.079 in
Wire Gauge	28 AWG	28 AWG
Wire Type	Ribbon Cable	Ribbon Cable

CONN RCPT 26POS IDC 28AWG GOLD

Part	Number of Rows	Row Spacing	Row Spacing	Connector Type	Color	Cable Termination	Number of Positions	Features	Contact Finish	Mounting Type	Wire Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Wire Gauge
3M 152226-0103-GB	2	2 mm	0.079 in	Receptacle	Gray	IDC	26	Feed Through, Strain Relief	Gold	Free Hanging (In-Line)	Ribbon Cable	Female Socket	0.76 Ám	30 Áin	0.079 in	2 mm	28 AWG
3M 152226-0110-GG	2	2 mm	0.079 in	Receptacle	Gray	IDC	26	Feed Through, Polarizing Key	Gold	Free Hanging (In-Line)	Ribbon Cable	Female Socket	0.38 µm	15 µin	0.079 in	2 mm	28 AWG
3M 152226-0113-GB	2	2 mm	0.079 in	Receptacle	Gray	IDC	26	Feed Through, Polarizing Key, Strain Relief	Gold	Free Hanging (In-Line)	Ribbon Cable	Female Socket	0.76 Ám	30 Áin	0.079 in	2 mm	28 AWG
3M 152226-0110-GB	2	2 mm	0.079 in	Receptacle	Gray	IDC	26	Feed Through, Polarizing Key	Gold	Free Hanging (In-Line)	Ribbon Cable	Female Socket	0.76 Ám	30 Áin	0.079 in	2 mm	28 AWG
3M 152226-0100-GB	2	2 mm	0.079 in	Receptacle	Gray	IDC	26	Feed Through	Gold	Free Hanging (In-Line)	Ribbon Cable	Female Socket	0.76 Ám	30 Áin	0.079 in	2 mm	28 AWG
