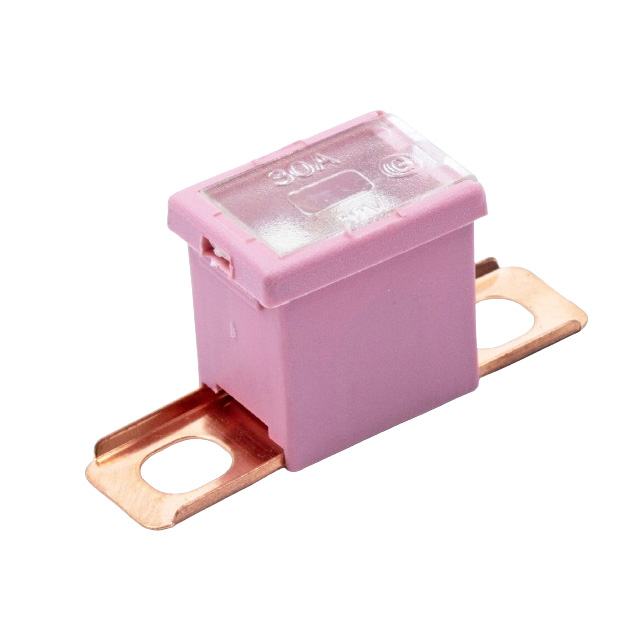

TFLD-30A

Active

OptiFuse

FUSE AUTO 30A 32VAC 32VDC

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 30A 32VAC 32VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TFLD-30A	TFLD Series

Approval Agency	ISO, SAE	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Pink	Pink, Red, Black, Blue, Green
Current Rating (Amps)	30 A	30 - 100 A
Fuse Type	Automotive	Automotive
Mounting Type	Bolt Mount	Bolt Mount
Package / Case	Auto Link	Auto Link
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	0.898 in	0.898 in
Size / Dimension [x]	22.8 mm	22.8 mm
Size / Dimension [y]	0.638 "	0.638 "
Size / Dimension [y]	16.2 mm	16.2 mm
Size / Dimension [z]	0.846 in	0.846 in
Size / Dimension [z]	21.5 mm	21.5 mm
Voltage Rating - AC	32 V	32 V
Voltage Rating - DC	32 V	32 V

FUSE AUTO 30A 32VAC 32VDC

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Breaking Capacity @ Rated Voltage	Mounting Type	Fuse Type	Response Time	Approval Agency	Color	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC
OptiFuse TFLD-30A	0.898 in	0.638 "	16.2 mm	0.846 in	22.8 mm	21.5 mm	Auto Link	1 kA	Bolt Mount	Automotive	Fast Blow	ISO, SAE	Pink	32 V	30 A	32 V
OptiFuse TFLD-50A	0.898 in	0.638 "	16.2 mm	0.846 in	22.8 mm	21.5 mm	Auto Link	1 kA	Bolt Mount	Automotive	Fast Blow	ISO, SAE	Red	32 V	50 A	32 V
OptiFuse TFLD-80A	0.898 in	0.638 "	16.2 mm	0.846 in	22.8 mm	21.5 mm	Auto Link	1 kA	Bolt Mount	Automotive	Fast Blow	ISO, SAE	Black	32 V	80 A	32 V
OptiFuse TFLD-100A	0.898 in	0.638 "	16.2 mm	0.846 in	22.8 mm	21.5 mm	Auto Link	1 kA	Bolt Mount	Automotive	Fast Blow	ISO, SAE	Blue	32 V	100 A	32 V
OptiFuse TFLD-40A	0.898 in	0.638 "	16.2 mm	0.846 in	22.8 mm	21.5 mm	Auto Link	1 kA	Bolt Mount	Automotive	Fast Blow	ISO, SAE	Green	32 V	40 A	32 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.71

General part information

30 A 32 V AC 32 V DC Fuse Automotive Bolt Mount Auto Link
