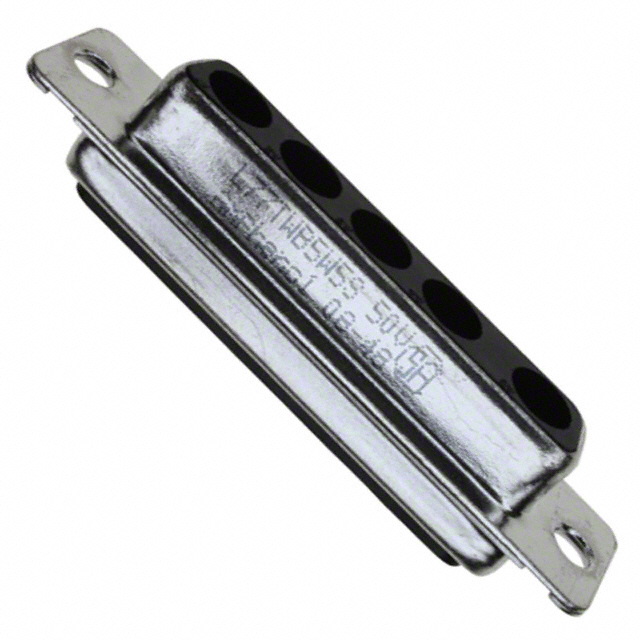

L77TWB5W5S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HOUSING RCPT 5POS

Deep-Dive with AI

Search across all available documentation for this part.

L77TWB5W5S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HOUSING RCPT 5POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77TWB5W5S

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle for Female Contacts
Contact Type	Power
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Mating Cycles	200
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	5
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Finish Thickness	2.54 µm
Shell Finish Thickness	100 µin
Shell Size, Connector Layout	5W5
Shell Size, Connector Layout	3

L77TWB5 Series

Part	Flange Feature	Color	Voltage Rating	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Rows	Dielectric Material	Number of Positions	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Type	Mounting Type	Backset Spacing	Backset Spacing	Termination	Mating Cycles	Shell Finish Thickness	Shell Finish Thickness	Note	Number of Positions [custom]	Features	Contact Finish Thickness
Amphenol ICC (Commercial Products) L77TWB5W5SMCV	Housing/Shell (Unthreaded)	Black	300 VDC	Bronze	16 µin	0.41 µm	Combo D-Sub	Gold	155 °C	-55 °C	Coax	1	Thermoplastic	5	5W5	3	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	0.406 in	10.3 mm	Solder
Amphenol ICC (Commercial Products) L77TWB5W5S	Housing/Shell (Unthreaded)	Black					Combo D-Sub		125 °C	-55 °C	Power	1	Thermoplastic Glass Filled		5W5	3	Receptacle for Female Contacts	Free Hanging (In-Line)				200	2.54 µm	100 µin	Contacts Not Included	5
Amphenol ICC (Commercial Products) L77TWB5W5SMP3V4RRM6	4-40 Board Side	Black	300 VDC	Bronze	16 µin	0.41 µm	Combo D-Sub	Gold	155 °C	-55 °C	Power	1	Thermoplastic		5W5	3	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	0.845 in	21.46 mm	Solder					5	Board Lock Mounting Brackets
Amphenol ICC (Commercial Products) L77TWB5W5SA514	Housing/Shell (Unthreaded)	Black	300 VDC	Bronze			Combo D-Sub	Gold	155 °C	-55 °C	Power	1	Thermoplastic		5W5	3	Receptacle Female Sockets									5	Guide Pin	Flash
Amphenol ICC (Commercial Products) L77TWB5W5SP3Y4R	4-40 Board Side	Black	300 VDC	Bronze	16 µin	0.41 µm	Combo D-Sub	Gold	155 °C	-55 °C	Power	1	Thermoplastic		5W5	3	Receptacle Female Sockets	Panel Mount Through Hole			Solder					5
Amphenol ICC (Commercial Products) L77TWB5W5P	Housing/Shell (Unthreaded)	Black					Combo D-Sub		155 °C	-55 °C	Power	1	Thermoplastic		5W5	3	Plug for Male Contacts	Free Hanging (In-Line)							Contacts Not Included	5	Grounding Indents
Amphenol ICC (Commercial Products) L77TWB5W5SEP3V4RRM6	4-40 Board Side	Black	300 VDC	Bronze	16 µin	0.41 µm	Combo D-Sub	Gold	155 °C	-55 °C	Power	1	Thermoplastic		5W5	3	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	0.845 in	21.46 mm	Solder					5	Board Lock Mounting Brackets
Amphenol ICC (Commercial Products) L77TWB5W5SMP2V4RRM6	4-40 Board Side	Black	300 VDC	Bronze	16 µin	0.41 µm	Combo D-Sub	Gold	155 °C	-55 °C	Power	1	Thermoplastic		5W5	3	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	0.375 in	9.52 mm	Solder					5	Board Lock Mounting Brackets
Amphenol ICC (Commercial Products) L77TWB5W5SP2Y3R	Board Side (M3)	Black	300 VDC	Bronze	16 µin	0.41 µm	Combo D-Sub	Gold	155 °C	-55 °C	Power	1	Thermoplastic		5W5	3	Receptacle Female Sockets	Panel Mount Through Hole			Solder					5
Amphenol ICC (Commercial Products) L77TWB5W5SP2YRM84	Female Screwlock (4-40) Mating Side	Black	300 VDC	Bronze	16 µin	0.41 µm	Combo D-Sub	Gold	155 °C	-55 °C	Power	1	Thermoplastic		5W5	3	Receptacle Female Sockets	Panel Mount Through Hole			Solder					5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 2.76
		10	$ 2.51
		25	$ 2.38
		50	$ 2.32
		100	$ 2.21
		250	$ 1.93
		500	$ 1.88
		1000	$ 1.60
		2500	$ 1.49

Description

General part information

L77TWB5 Series

Receptacle for Female Contacts Housing D-Sub, Combo Connector 5 (Power) Position
