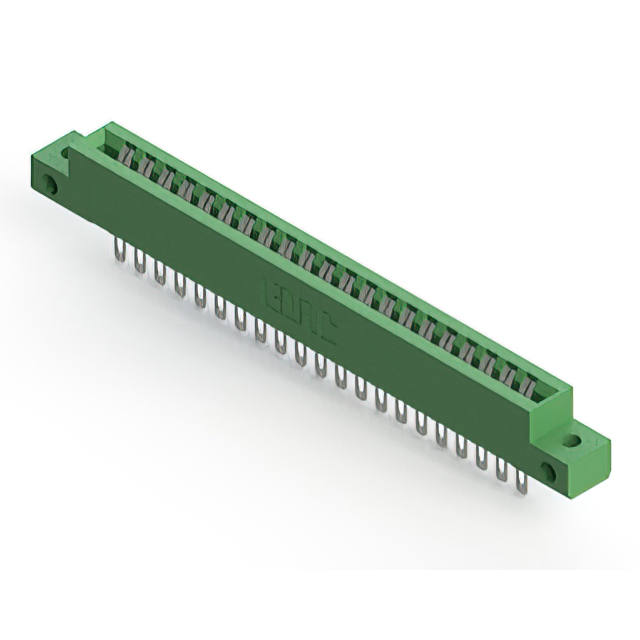

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 21 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
306-021-400-112
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 21 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 306-021-400-112 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
306-021 Series
| Part | Gender | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Termination | Termination Rows | Color | Contact Finish | Features | Card Type | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Material - Insulation | Pitch [x] | Pitch [x] | Read Out | Contact Material | Contact Type | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | 1 | Green | Gold | Card Guides | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | Copper Alloy | Cantilever | |||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Solder | 1 | Green | Gold | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | Copper Alloy | Cantilever | Panel Mount Through Hole | 3.96 mm | 0.156 in | |
EDAC Inc. | Female | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Floating Bobbin Flush Mount | Solder Eyelet(s) | 1 | Green | Gold | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | Copper Alloy | Cantilever | 2.95 mm | 0.116 in | ||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Solder Eyelet(s) | 1 | Green | Gold | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | Copper Alloy | Cantilever | 3.25 mm | 0.128 " | ||
EDAC Inc. | Female | -40 °C | 105 ░C | Flush Mount Side Opening Unthreaded | Solder Eyelet(s) | 1 | Green | Tin | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | Copper Alloy | Cantilever | 3.25 mm | 0.128 " | ||||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 1 | Green | Gold | Card Guides | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | Copper Alloy | Cantilever | Panel Mount Through Hole | ||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 1 | Green | Gold | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | Copper Alloy | Cantilever | Panel Mount Through Hole | |||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 1 | Green | Gold | Card Guides | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | Copper Alloy | Cantilever | Panel Mount Through Hole | ||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Solder | 1 | Green | Gold | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | Copper Alloy | Cantilever | Panel Mount Through Hole | 3.96 mm | 0.156 in | |
EDAC Inc. | Female | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Floating Bobbin Flush Mount | Solder | 1 | Green | Gold | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | Copper Alloy | Cantilever | Panel Mount Through Hole | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
306-021 Series
42 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
