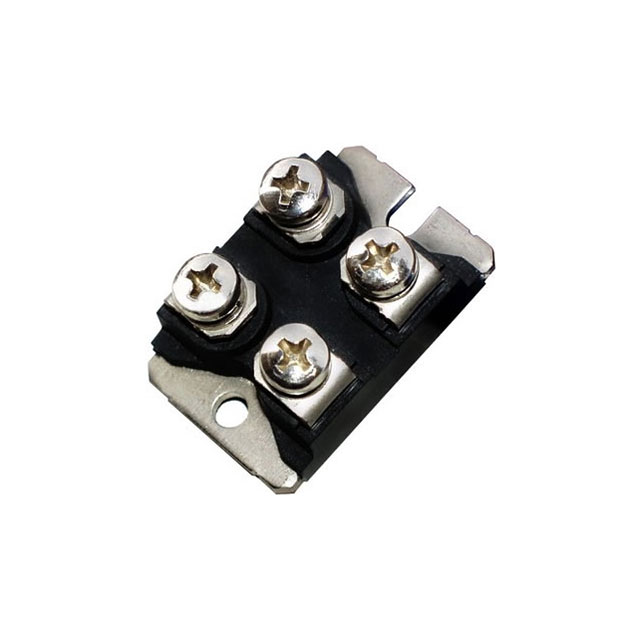

STPS240H100TV1Y - STPS240H100TV1Y

STPS240H100TV1Y

Active
STMicroelectronics

SCHOTTKY RECTIFIER, 100V, 240A, ISOTOP ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAN2025+21
STPS240H100TV1Y - STPS240H100TV1Y

STPS240H100TV1Y

Active
STMicroelectronics

SCHOTTKY RECTIFIER, 100V, 240A, ISOTOP ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsAN2025+21

Technical Specifications

Parameters and characteristics for this part

SpecificationSTPS240H100TV1Y
Current - Average Rectified (Io) (per Diode)120 A
Current - Reverse Leakage @ Vr90 µA
Diode Configuration2 Independent
GradeAutomotive
Mounting TypeChassis Mount
Operating Temperature - Junction [Max]175 ░C
Operating Temperature - Junction [Min]-40 °C
Package / CaseSOT-227-4, miniBLOC
QualificationAEC-Q101
Speed200 mA, 500 ns
Supplier Device PackageISOTOP
TechnologySchottky
Voltage - DC Reverse (Vr) (Max) [Max]100 V
Voltage - Forward (Vf) (Max) @ If825 mV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 27.15
10$ 24.13
100$ 21.10
500$ 18.01
NewarkEach 1$ 27.20
5$ 23.63
10$ 20.06
25$ 20.05
50$ 19.68
100$ 18.92
300$ 18.90

Description

General part information

STPS240H100TV1Y Series

The STPS240H100TV1Y is an automotive Schottky diode suitable for high frequency switch mode power supply.

Especially suited for DC-DC applications, this isolated ISOTOP Schottky diode will improve the thermal management in harshest environments. Its high forward surge capability ensures a good robustness during transient phases or in case of short circuit event.
