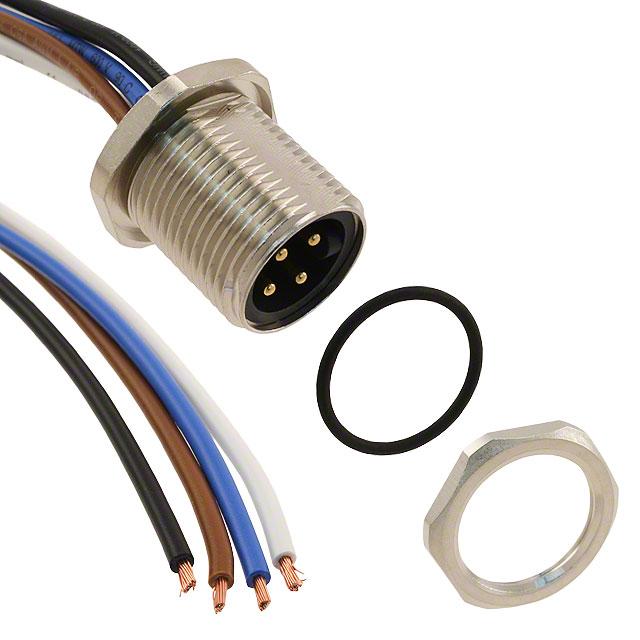

41-40013

Active

Amphenol CONEC

CIRC CBL 4POS RCPT TO WIRE 1.64'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

41-40013

Active

Amphenol CONEC

CIRC CBL 4POS RCPT TO WIRE 1.64'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	41-40013

1st Connector Gender	Male Pins
1st Connector Mounting Type	Panel Mount
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	0.875 in
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Individual
Color	Multiple
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

41-4001 Series

Part	Color	Shielding	Assembly Configuration	1st Connector Gender	Cable Material	1st Connector Orientation [custom]	2nd Connector Type	1st Connector Type	1st Connector Number of Positions Loaded	Usage	Length [x]	Length [x]	1st Connector Shell Size - Insert	Ingress Protection	Cable Type	1st Connector Mounting Type	1st Connector Number of Positions	Insert Material	Mounting Feature	Voltage Rating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions	Termination	Shell Size - Insert	Connector Type	Material Flammability Rating	Current Rating (Amps)	Orientation	Contact Finish - Mating	Shell Material	Shell Finish	Primary Material	Applications	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Amphenol CONEC 41-40014	Multiple	Unshielded	Standard	Male Pins	Polyvinyl Chloride (PVC)	Keyed	Wire Leads	Receptacle	All	Industrial Environments	1.64 ft	500 mm	0.875 in	IP67 - Dust Tight Waterproof	Individual	Panel Mount	5
Amphenol CONEC 41-40017	Multiple	Unshielded	Standard	Female Sockets	Polyvinyl Chloride (PVC)	Keyed	Wire Leads	Plug	All	Industrial Environments	1.64 ft	500 mm	0.875 in	IP67 - Dust Tight Waterproof	Individual	Panel Mount	5
Amphenol CONEC 41-40015	Multiple	Unshielded	Standard	Female Sockets	Polyvinyl Chloride (PVC)	Keyed	Wire Leads	Plug	All	Industrial Environments	1.64 ft	500 mm	0.875 in	IP67 - Dust Tight Waterproof	Individual	Panel Mount	3
Amphenol CONEC 41-40019	Silver	Unshielded												IP67 - Dust Tight Waterproof				Thermoplastic Polyurethane (TPU)	Bulkhead - Rear Side Nut	300 VDC	Panel Mount Through Hole	-30 ░C	75 ░C	Copper Zinc	4	Solder	7/8"-4	Male Pins Receptacle	UL94	12 A	Keyed	Gold	Copper Zinc	Nickel	Metal	Automotive Industrial
Amphenol CONEC 41-40012	Multiple	Unshielded	Standard	Male Pins	Polyvinyl Chloride (PVC)	Keyed	Wire Leads	Receptacle	All	Industrial Environments	1.64 ft	500 mm	0.875 in	IP67 - Dust Tight Waterproof	Individual	Panel Mount	3
Amphenol CONEC 41-40013	Multiple	Unshielded	Standard	Male Pins	Polyvinyl Chloride (PVC)	Keyed	Wire Leads	Receptacle	All	Industrial Environments	1.64 ft	500 mm	0.875 in	IP67 - Dust Tight Waterproof	Individual	Panel Mount	4
Amphenol CONEC 41-40018	Silver	Unshielded												IP67 - Dust Tight Waterproof				Thermoplastic Polyurethane (TPU)	Bulkhead - Rear Side Nut	300 VDC	Panel Mount Through Hole	-30 ░C	75 ░C	Copper Zinc		Solder		Male Pins Receptacle	UL94	12 A	Keyed	Gold	Copper Zinc	Nickel	Metal	Automotive Industrial	2	3	1
Amphenol CONEC 41-40010	Multiple	Unshielded	Standard	Male Pins	Polyvinyl Chloride (PVC)	Keyed	Wire Leads	Receptacle	All	Industrial Environments	1.64 ft	500 mm	0.875 in	IP67 - Dust Tight Waterproof	Individual	Panel Mount	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 20.23
		10	$ 17.54
		25	$ 16.62
		50	$ 16.38
		100	$ 14.45

Description

General part information

41-4001 Series

Circular Cable Assembly Unshielded 1.64' (500.00mm)
