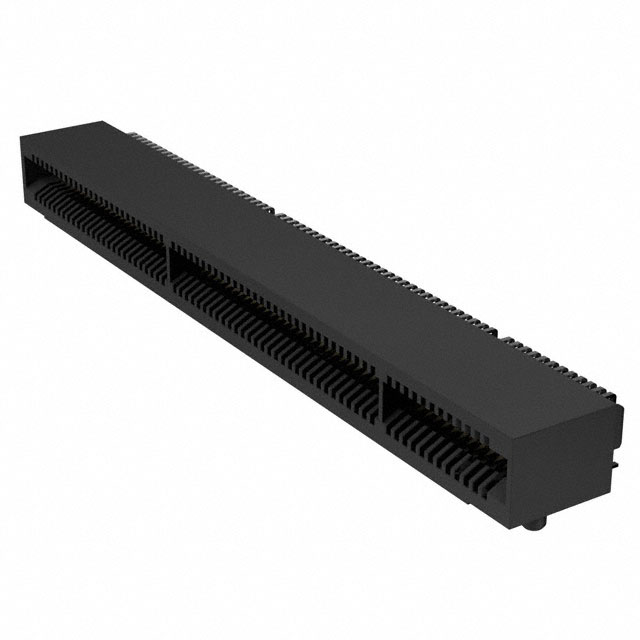

MEC1-170-02-F-D-RA1-SL

Active

Samtec Inc.

CARD EDGE CONN, DUAL SIDE, 140POS, SMD ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMEC1 Series Other Related Documents 01 Datasheet +2

MEC1-170-02-F-D-RA1-SL

Active

Samtec Inc.

CARD EDGE CONN, DUAL SIDE, 140POS, SMD ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsMEC1 Series Other Related Documents 01 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MEC1-170-02-F-D-RA1-SL

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Contact Material	Phosphor Bronze
Contact Type	Loop Bellows
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount, Right Angle
Number of Positions	140
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Solder

MEC1-170 Series

Part	Card Type	Color	Contact Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Termination	Pitch [x]	Pitch [x]	Gender	Contact Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness	Card Thickness	Material - Insulation	Read Out	Mounting Type	Number of Rows	Features
Samtec Inc. MEC1-170-02-S-D-RA2-SL	Non Specified - Dual Edge	Black	Phosphor Bronze	Gold	0.76 Ám	30 Áin	Solder	0.039 in	1 mm	Female	Loop Bellows	140	-55 °C	125 °C	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Dual	Surface Mount Right Angle	2
Samtec Inc. MEC1-170-02-S-D-A	Non Specified - Dual Edge	Black	Phosphor Bronze	Gold	0.76 Ám	30 Áin	Solder	0.039 in	1 mm	Female	Loop Bellows	140	-55 °C	125 °C	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Dual	Surface Mount	2	Board Guide
Samtec Inc. MEC1-170-02-F-D-RA1-SL	Non Specified - Dual Edge	Black	Phosphor Bronze	Gold	0.076 Ám	3 Áin	Solder	0.039 in	1 mm	Female	Loop Bellows	140	-55 °C	125 °C	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Dual	Surface Mount Right Angle	2
Samtec Inc. MEC1-170-02-FM-D-LC	Non Specified - Dual Edge	Black	Beryllium Copper	Gold	0.076 Ám	3 Áin	Solder	0.039 in	1 mm	Female	Loop Bellows	140	-55 °C	125 °C	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Dual	Surface Mount	2
Samtec Inc. MEC1-170-02-S-D-K	Non Specified - Dual Edge	Black	Beryllium Copper	Gold	0.76 Ám	30 Áin	Solder	0.039 in	1 mm	Female	Loop Bellows	140	-55 °C	125 °C	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Dual	Surface Mount	2	Pick and Place
Samtec Inc. MEC1-170-02-L-D-LC	Non Specified - Dual Edge	Black	Beryllium Copper	Gold	0.25 Ám	10 Áin	Solder	0.039 in	1 mm	Female	Loop Bellows	140	-55 °C	125 °C	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Dual	Surface Mount	2
Samtec Inc. MEC1-170-02-L-D	Non Specified - Dual Edge	Black	Beryllium Copper	Gold	0.25 Ám	10 Áin	Solder	0.039 in	1 mm	Female	Loop Bellows	140	-55 °C	125 °C	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Dual	Surface Mount	2
Samtec Inc. MEC1-170-02-F-D-EM1	Non Specified - Dual Edge	Black	Phosphor Bronze	Gold	0.076 Ám	3 Áin	Solder	0.039 in	1 mm	Female	Loop Bellows	140	-55 °C	125 °C	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Dual	Board Edge Straddle Mount	2
Samtec Inc. MEC1-170-02-L-D-LC-K	Non Specified - Dual Edge	Black	Beryllium Copper	Gold	0.25 Ám	10 Áin	Solder	0.039 in	1 mm	Female	Loop Bellows	140	-55 °C	125 °C	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Dual	Surface Mount	2	Board Lock Pick and Place
Samtec Inc. MEC1-170-02-F-D-K	Non Specified - Dual Edge	Black	Beryllium Copper	Gold	0.076 Ám	3 Áin	Solder	0.039 in	1 mm	Female	Loop Bellows	140	-55 °C	125 °C	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Dual	Surface Mount	2	Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.89
		10	$ 8.93
		25	$ 8.04
		50	$ 7.27
		100	$ 6.48
		500	$ 6.46
Newark	Each	1	$ 11.63
		10	$ 11.15
		100	$ 9.21
		500	$ 7.79
		1000	$ 6.79
		2500	$ 6.46

Description

General part information

MEC1-170 Series

140 Position Female Connector Non Specified - Dual Edge Gold 0.039" (1.00mm) Black
