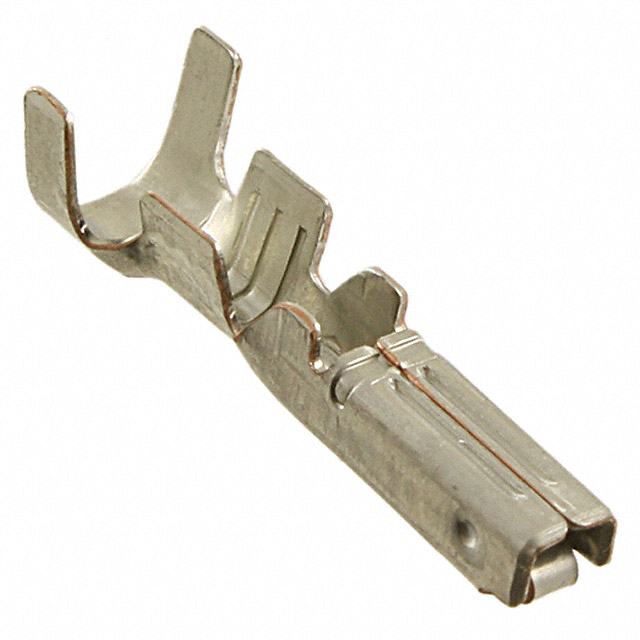

282110-1
ActiveTE Connectivity Raychem Cable Protection
CONTACT, SUPERSEAL 1.5 SERIES, SOCKET, 18 AWG, 15 AWG, CRIMP, PHOSPHOR BRONZE ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
282110-1
ActiveTE Connectivity Raychem Cable Protection
CONTACT, SUPERSEAL 1.5 SERIES, SOCKET, 18 AWG, 15 AWG, CRIMP, PHOSPHOR BRONZE ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 282110-1 |
|---|---|
| Contact Finish | Tin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 15 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AMP Superseal 1.5mm Series Series
Receptacle Terminal, 18 – 15 AWG, .75 – 1.5 mm² Wire, 1.5 mm [.059 in] Tab Width, Tin (Sn), Sealable, AMP Superseal 1.5mm Series
