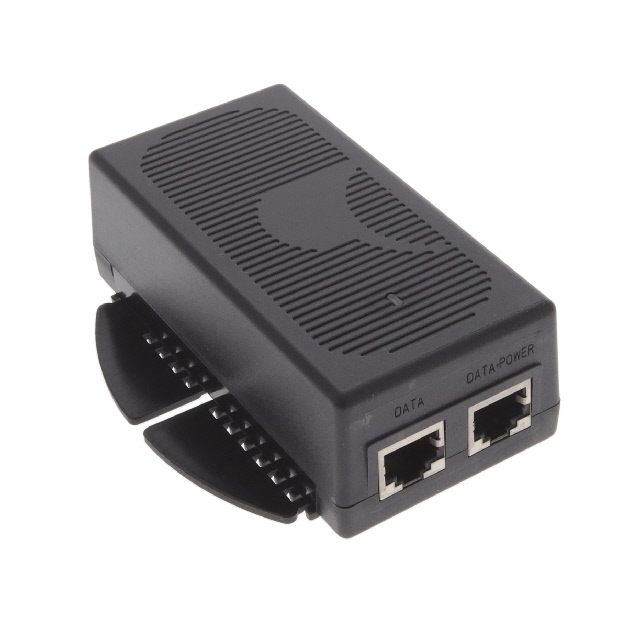

GT-96180-1830-T3-PP

Active

GlobTek, Inc.

POE INJECTOR 30V 18W DESKTOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GT-96180-1830-T3-PP

Active

GlobTek, Inc.

POE INJECTOR 30V 18W DESKTOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GT-96180-1830-T3-PP

Approval Agency	CB, PSE, EAC, ETL, VCCI, CE, UKRSepro, S-Mark
Compliance	IEEE802.3af
Current - Output	600 mA
Data Rate	10 Mbps, 1000 Mbps, 100 Mbps
Efficiency	Level VI
Features	SCP, OCP, OVP
Input Connector	IEC 320-C14
Mounting Type	Desktop
Number of Ports	1
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	RJ45 (Data, Power)
Power (Watts) - Per Port	18 W
Size / Dimension [x]	107 mm
Size / Dimension [x]	4.21 "
Size / Dimension [y]	55 mm
Size / Dimension [y]	2.17 in
Size / Dimension [z]	1.41 in
Size / Dimension [z]	35.7 mm
Standard Number	60335-1, 60950-1, 62368-1
Type	Midspan Injector
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	30 VDC

GT-96180 Series

Part	Data Rate	Compliance	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Input Connector	Power (Watts) - Per Port	Approval Agency	Output Connector	Standard Number	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Number of Ports	Features	Mounting Type	Type	Voltage - Output	Size / Dimension [y]	Size / Dimension [z]
GlobTek, Inc. GT-96180-1830-T3-PP	10 Mbps 100 Mbps 1000 Mbps	IEEE802.3af	-10 °C	40 °C	600 mA	IEC 320-C14	18 W	CB CE EAC ETL PSE S-Mark UKRSepro VCCI	RJ45 (Data Power)	60335-1 60950-1 62368-1	Level VI	107 mm	55 mm	4.21 "	1.41 in	2.17 in	35.7 mm	90 VAC	264 VAC	1	OCP OVP SCP	Desktop	Midspan Injector	30 VDC
GlobTek, Inc. GT-96180-1848-T2-PP	10 Mbps 100 Mbps 1000 Mbps		-10 °C	40 °C	370 mA	IEC 320-C8	18 W	CB CCC CE EAC ETL PSE RCM S-Mark UKRSepro VCCI	RJ45 (Data Power)	60335-1 60950-1 62368-1	Level VI	107 mm	55 mm	4.21 "	1.41 in	2.17 in	35.7 mm	90 VAC	264 VAC	1	OCP OVP SCP	Desktop	Passive Injector	48 V
GlobTek, Inc. GT-96180-1818-T3-PP	10 Mbps 100 Mbps 1000 Mbps	IEEE802.3af	-10 °C	40 °C	1 A	IEC 320-C14	18 W	CB CE EAC ETL PSE S-Mark UKRSepro VCCI	RJ45 (Data Power)	60335-1 60950-1 62368-1	Level VI	107 mm	55 mm	4.21 "	1.41 in	2.17 in	35.7 mm	90 VAC	264 VAC	1	OCP OVP SCP	Desktop	Midspan Injector	18 V
GlobTek, Inc. GT-96180-1856R3APOE	10 Mbps 100 Mbps 1000 Mbps	IEEE802.3af	-10 °C	40 °C	320 mA	IEC 320-C6 (Power) RJ45 (Data)	18 W	CB CE EAC ETL PSE S-Mark UKRSepro VCCI	RJ45 (Data Power)	60335-1 60950-1 62368-1	Level VI	104 mm		4.09 in	1.58 "	2.13 in		90 VAC	264 VAC	1	OCP OVP SCP	Wall Mount	Midspan Injector	56 V	54 mm	40.2 mm
GlobTek, Inc. GT-96180-1830-T2-PP	10 Mbps 100 Mbps 1000 Mbps		-10 °C	40 °C	600 mA	IEC 320-C8	18 W	CB CCC CE EAC ETL PSE RCM S-Mark UKRSepro VCCI	RJ45 (Data Power)	60335-1 60950-1 62368-1	Level VI	107 mm	55 mm	4.21 "	1.41 in	2.17 in	35.7 mm	90 VAC	264 VAC	1	OCP OVP SCP	Desktop	Passive Injector	30 VDC
GlobTek, Inc. GT-96180-1848-T3-PP	10 Mbps 100 Mbps 1000 Mbps	IEEE802.3af	-10 °C	40 °C	375 mA	IEC 320-C14	18 W	CB CE EAC ETL PSE S-Mark UKRSepro VCCI	RJ45 (Data Power)	60335-1 60950-1 62368-1	Level VI	107 mm	55 mm	4.21 "	1.41 in	2.17 in	35.7 mm	90 VAC	264 VAC	1	OCP OVP SCP	Desktop	Midspan Injector	48 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.55
		10	$ 14.55
		25	$ 13.82
		50	$ 13.29
		100	$ 12.79
		250	$ 12.15
		500	$ 11.68

Description

General part information

GT-96180 Series

30V Power Over Ethernet (POE) 1 Port Midspan Injector 10/100/1000 Mbps Data Rate
