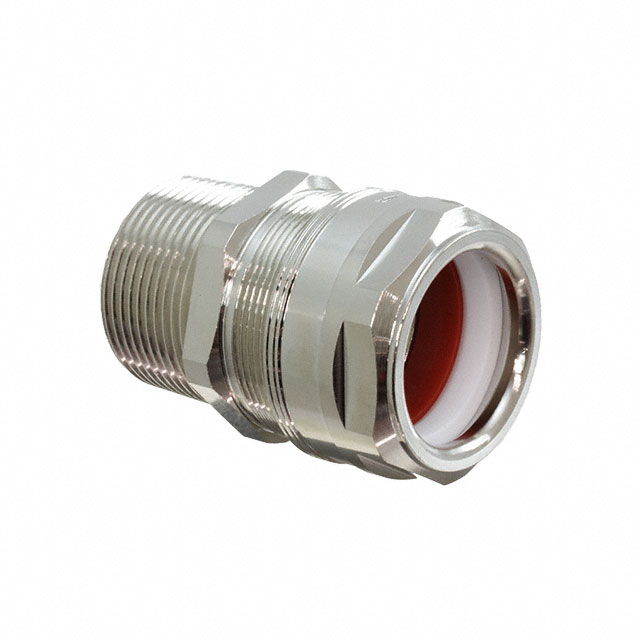

LEX3114MSHTS

Active

Pflitsch

CABLE GLAND 26-34MM 1 1/4" NPT

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 26-34MM 1 1/4" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	LEX3114MSHTS

Color	Silver
Ingress Protection	IP66/IP68
Material	Brass, Nickel Plated
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max) [Max] [diameter]	34 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.339 in
Outside Cable Diameter (Min) [Min]	1.024 in
Outside Cable Diameter (Min) [Min]	26 mm
Thread Length [x]	1.024 in
Thread Length [x]	26 mm
Thread Size
Type	Cable Gland

Part	Type	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Length [x]	Thread Length [x]	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Thread Size	Ingress Protection
Pflitsch LEX3114MSHTS	Cable Gland	1.024 in	26 mm	1.024 in	26 mm	Brass Nickel Plated	34 mm	1.339 in	130 °C	-60 °C	Silver		IP66/IP68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated 1 1/4" NPT Silver
