EM-SGL-PG135-MET-C

Active

TE Connectivity Raychem Cable Protection

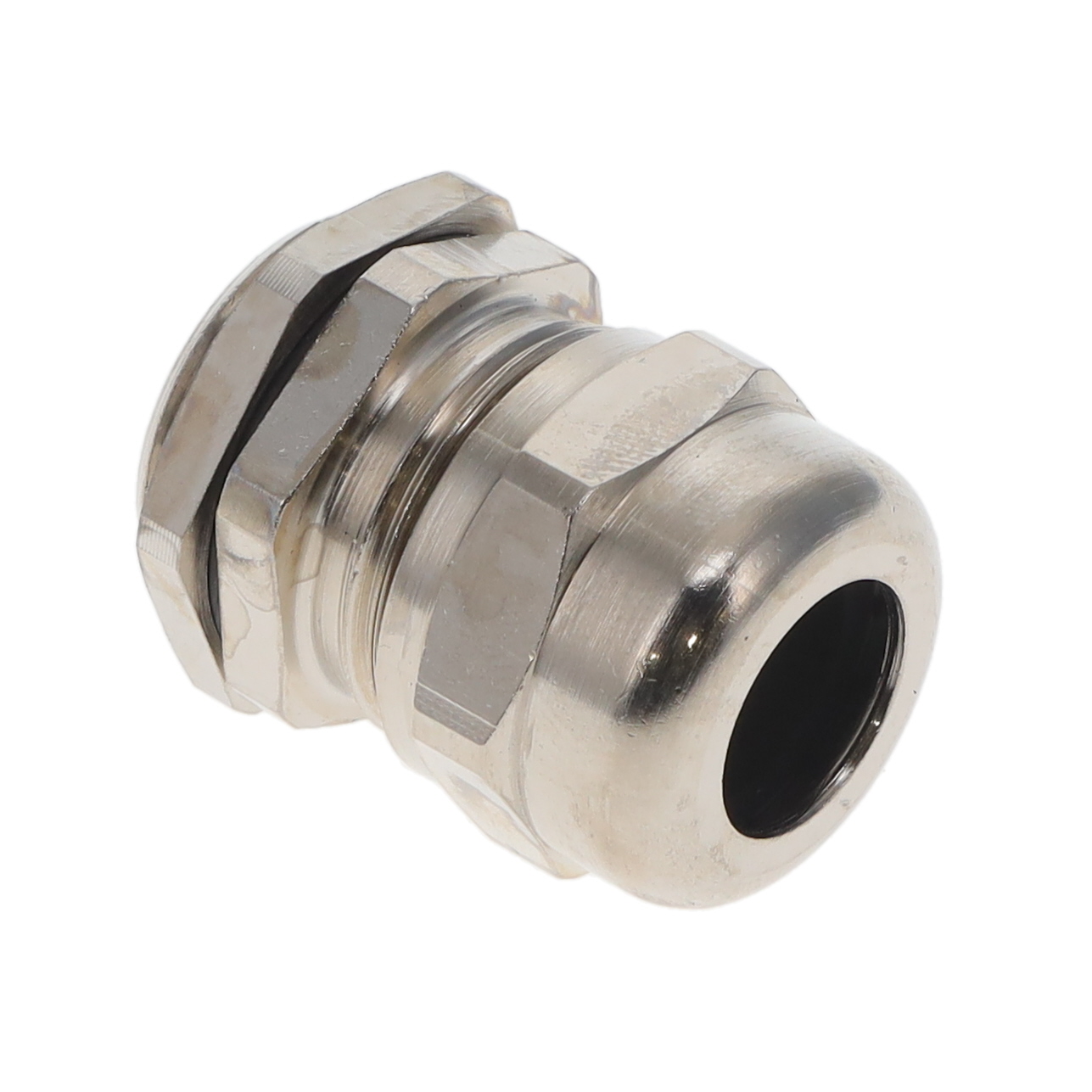

CABLE GLAND 6-12MM PG13.5 BRASS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CABLE GLAND 6-12MM PG13.5 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	EM-SGL-PG135-MET-C

Color	Silver
Includes	Locknut, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in
Thread Length	0.256 in
Thread Length	6.5 mm
Thread Size	PG13.5
Type	Cable Gland

Part	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Material	Type	Thread Size
TE Connectivity Raychem Cable Protection EM-SGL-PG135-MET-C	IP68 - Dust Tight Waterproof	0.472 in	12 mm	Locknut Seal	Silver	6 mm	0.236 in	100 °C	-20 C	0.256 in	6.5 mm	Brass Nickel Plated	Cable Gland	PG13.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG13.5 Silver
