QRM8-078-05.0-L-D-A

Active

Samtec Inc.

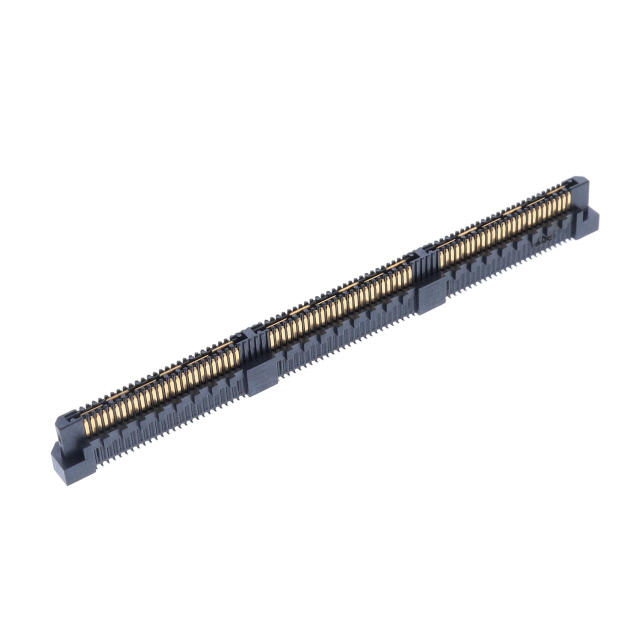

CONN HIGH SPEED TERMINAL STRIP HDR 156 POS 0.8MM SOLDER ST SMD TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQRF8 Series Other Related Documents 03 Datasheet +2

QRM8-078-05.0-L-D-A

Active

Samtec Inc.

CONN HIGH SPEED TERMINAL STRIP HDR 156 POS 0.8MM SOLDER ST SMD TRAY

Deep-Dive with AI

DocumentsQRF8 Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QRM8-078-05.0-L-D-A

Connector Type	Male Pins, Array
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Height Above Board	0.307 in
Height Above Board	7.8 mm
Mated Stacking Heights	10 mm, 12 mm
Mounting Type	Surface Mount
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

QRM8-078 Series

Part	Contact Finish	Connector Type	Mounting Type	Number of Rows	Height Above Board	Height Above Board	Mated Stacking Heights [z]	Features	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights
Samtec Inc. QRM8-078-07.0-S-D-A-GP-K	Gold	Array Male Pins	Surface Mount	2	0.385 in	9.78 mm	12 mm 14 mm	Board Guide Ground Bus (Plane) Pick and Place	0.8 mm	0.031 in
Samtec Inc. QRM8-078-07.0-S-D-A-GP	Gold	Array Male Pins	Surface Mount	2	0.385 in	9.78 mm	12 mm 14 mm		0.8 mm	0.031 in
Samtec Inc. QRM8-078-01-S-RA-GP	Gold	Array Male Pins	Surface Mount Right Angle	2					0.8 mm	0.031 in
Samtec Inc. QRM8-078-07.0-L-D-A-K-TR	Gold	Array Male Pins	Surface Mount	2	0.385 in	9.78 mm	12 mm 14 mm	Board Guide Ground Bus (Plane) Pick and Place	0.8 mm	0.031 in	10 Áin	0.25 Ám
Samtec Inc. QRM8-078-05.0-S-D-A-GP	Gold	Array Male Pins	Surface Mount	2	0.307 in	7.8 mm			0.8 mm	0.031 in			10 mm 12 mm
Samtec Inc. QRM8-078-05.0-L-D-A-K	Gold	Array Male Pins	Surface Mount	2	0.307 in	7.8 mm		Board Guide Ground Bus (Plane) Pick and Place	0.8 mm	0.031 in	10 Áin	0.25 Ám	10 mm 12 mm
Samtec Inc. QRM8-078-05.0-L-D-A-GP	Gold	Array Male Pins	Surface Mount	2	0.307 in	7.8 mm			0.8 mm	0.031 in	10 Áin	0.25 Ám	10 mm 12 mm
Samtec Inc. QRM8-078-07.0-L-D-A	Gold	Array Male Pins	Surface Mount	2	0.385 in	9.78 mm	12 mm 14 mm		0.8 mm	0.031 in	10 Áin	0.25 Ám
Samtec Inc. QRM8-078-07.0-L-D-A-K	Gold	Array Male Pins	Surface Mount	2	0.385 in	9.78 mm	12 mm 14 mm	Board Guide Ground Bus (Plane) Pick and Place	0.8 mm	0.031 in	10 Áin	0.25 Ám
Samtec Inc. QRM8-078-05.0-L-D-A	Gold	Array Male Pins	Surface Mount	2	0.307 in	7.8 mm			0.8 mm	0.031 in	10 Áin	0.25 Ám	10 mm 12 mm
