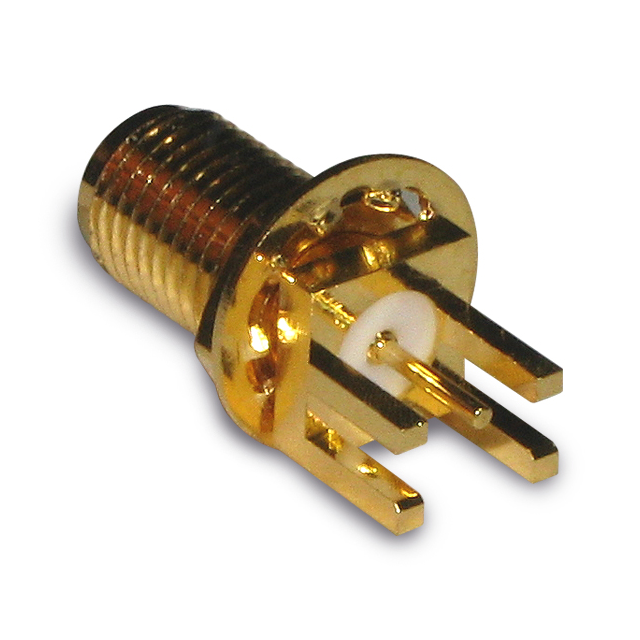

CONN SMA 0HZ TO 18GHZ 50OHM SOLDER ST EDGE MOUNT F GOLD

Deep-Dive with AI

Search across all available documentation for this part.

132384

Active

Amphenol RF

CONN SMA 0HZ TO 18GHZ 50OHM SOLDER ST EDGE MOUNT F GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	132384

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Panel Mount, End Launch, Board Edge
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

1323 Series

Part	Body Material	Body Finish	Color	Accessory Type	Connector Style	For Use With/Related Products	Includes	Contact Termination	Impedance	Frequency - Max [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Shield Termination	Connector Type	Mating Cycles	Number of Ports	Cable Group	Cable Group	Center Contact Plating	Housing Color	Center Contact Material	Convert From (Adapter End)	Center Gender	Adapter Type	Convert To (Adapter End)	Style	Conversion Type	Adapter Series	Mounting Feature	Voltage Rating	Ingress Protection
Amphenol RF 132364	Brass	Gold	Gold	Cap (Cover)	RP-SMA	RP-SMA Jacks
Amphenol RF 132344	Brass	Gold			SMA		1 Connector 1 End Cap	Solder	50 Ohms	18 GHz	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder	Male Pin Plug	500	1	0.25 in	RG-401	Gold	Gold	Brass
Amphenol RF 132345	Brass	Gold			SMA			Solder	50 Ohms	18 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder	Female Socket Jack	500	1	0.25 in	RG-401	Gold	Gold	Brass
Amphenol RF 132366	Brass	Gold			SMA			Solder	50 Ohms	18 GHz	Board Edge End Launch	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder	Male Pin Plug	500	1			Gold	Gold	Brass
Amphenol RF 132322	Brass	Gold			SMA			Solder	50 Ohms	18 GHz	Board Edge End Launch	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder	Female Socket Receptacle	500	1			Gold	Gold	Beryllium Copper
Amphenol RF 132339	Brass	Gold							50 Ohms	18 GHz	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)							Gold		Beryllium Copper	SMA Plug Male Pin	Male to Male	Plug to Plug	Male Pin SMA Plug	Right Angle	Same Series	SMA to SMA
Amphenol RF 132384	Brass	Gold			SMA		1 Connector 1 Lockwasher 1 Nut	Solder	50 Ohms	18 GHz	Board Edge End Launch Panel Mount	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder	Female Socket Jack	500	1			Gold	Gold	Beryllium Copper								Bulkhead - Front Side Nut
Amphenol RF 132324	Brass	Gold			SMA			Solder	50 Ohms	18 GHz	Panel Mount Right Angle	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder	Female Socket Jack	500	1			Gold	Gold	Beryllium Copper								Flange
Amphenol RF 132374	Brass	Gold			SMA			Solder	50 Ohms	18 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	500	1			Gold		Brass									500 V
Amphenol RF 132397	Brass	Nickel			SMA		1 Connector 1 Contact 1 Ferrule 1 Insulator 1 Lockwasher 1 Nut 1 Sleeve 7 pcs	Solder						Polytetrafluoroethylene (PTFE)	Crimp	Female Socket Jack	500	1		1.13mm Coaxial Cable	Gold	Silver	Beryllium Copper Brass								Bulkhead - Rear Side Nut		IP67 - Dust Tight Waterproof
