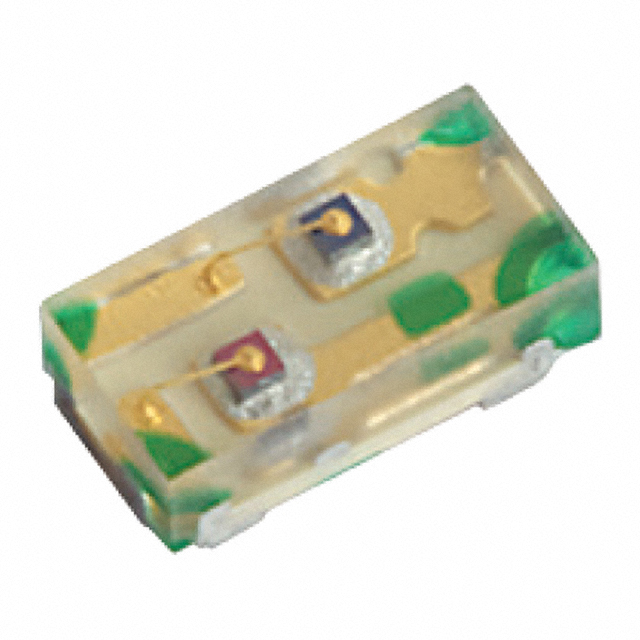

XZMGUR53W-9
ActiveSunLED
LED GREEN/RED CLEAR 4SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZMGUR53W-9
ActiveSunLED
LED GREEN/RED CLEAR 4SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMGUR53W-9 |
|---|---|
| Color | Red, Green |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 0.5 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.6 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 11 mcd |
| Millicandela Rating [custom] | 14 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Supplier Device Package | 4-SMD |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V, 2 V |
| Wavelength - Dominant | 568 nm, 617 nm |
| Wavelength - Peak | 565 nm, 627 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.10 | |
| 6000 | $ 0.09 | |||
| 10000 | $ 0.09 | |||
| 50000 | $ 0.08 | |||
| 100000 | $ 0.08 | |||
Description
General part information
XZMGUR53 Series
Green, Red 568nm Green, 617nm Red LED Indication - Discrete 2.2V Green, 2V Red 0603 (1608 Metric)
