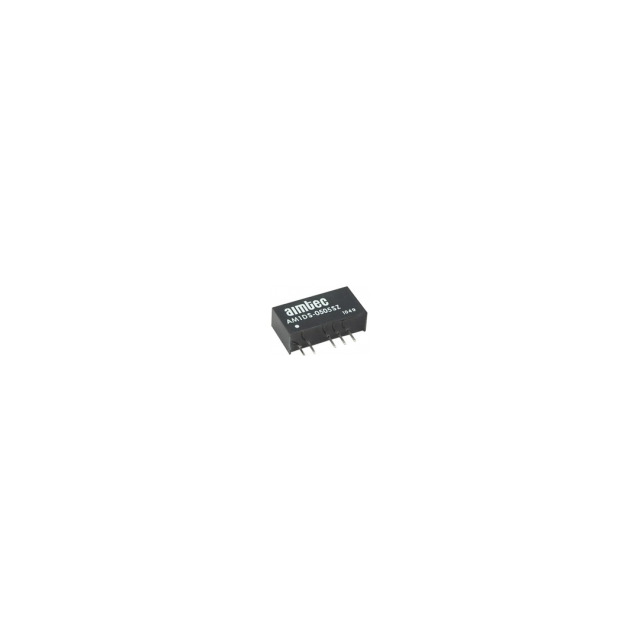

AM1DS-1215SH40Z

Active

aimtec

DC DC CONVERTER 15V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM1DS-1215SH40Z

Active

aimtec

DC DC CONVERTER 15V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.96
		5	$ 9.89
		10	$ 9.81
		20	$ 9.66
		40	$ 9.36
		80	$ 8.99

Description

General part information

AM1DS Series

Isolated Module DC DC Converter 1 Output 15V 66.7mA 10.8V - 13.2V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM1DS-1215SH40Z	AM1DS Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	-	cULus, cURus
Current - Output (Max)	-	33.33 - 152 mA
Current - Output (Max)	-	33.33 - 152 mA
Current - Output (Max)	-	42 mA
Current - Output (Max)	-	21 mA
Current - Output (Max) [Max]	66.7 mA	21 - 303 mA
Efficiency	75 %	71 - 85 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	-	6-SIP Module, 4 Leads, 7-SIP Module, 4 Leads, 6-SIP Module, 5 Leads, 7-SIP Module, 6 Leads, 7-SIP Module, 5 Leads
Size / Dimension	-	0.76 - 0.77 "
Size / Dimension	-	0.37 - 0.4 in
Size / Dimension	-	0.24 "
Size / Dimension [x]	19.5 mm	19.5 mm
Size / Dimension [x]	0.77 "	0.77 - 19.7 mm
Size / Dimension [y]	6 mm	6 mm
Size / Dimension [y]	0.24 in	0.24 - 6 mm
Size / Dimension [z]	0.39 in	0.39 - 10.2 mm
Size / Dimension [z]	10 mm	10 mm
Supplier Device Package	-	7-SIP
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	13.2 V	3.6 - 26.4 V
Voltage - Input (Min) [Min]	10.8 V	3 - 21.6 V
Voltage - Isolation	4000 V	1.5 - 6000 V
Voltage - Output 1	15 V	3.3 - 24 V
Voltage - Output 1	-	3.3 - 24 V
Voltage - Output 1	-	-24 - -3.3 V
Voltage - Output 2	-	-24 - -3.3 V

AM1DS Series

DC DC CONVERTER 5V 1W

Part	Mounting Type	Voltage - Output 1	Applications	Voltage - Input (Max) [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Output (Max) [Max]	Efficiency	Voltage - Input (Min) [Min]	Number of Outputs	Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Package / Case
aimtec AM1DS-1205SH40Z	Through Hole	5 V	ITE (Commercial)	13.2 V	4000 V	85 °C	-40 °C	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	200 mA	74 %	10.8 V	1	Isolated Module
aimtec AM1DS-1212DH40Z	Through Hole		ITE (Commercial)	13.2 V	4000 V	85 °C	-40 °C	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "		76 %	10.8 V	2	Isolated Module	12 V	-12 V	-12 V	41.67 mA	41.67 mA
aimtec AM1DS-1205SZ	Through Hole	5 V	ITE (Commercial)	13.2 V	1000 V	85 °C	-40 °C	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	200 mA	74 %	10.8 V	1	Isolated Module
aimtec AM1DS-0515DH30Z	Through Hole		ITE (Commercial)	5.5 V	3000 V	85 °C	-40 °C	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "		71 %	4.5 V	2	Isolated Module	15 V	-15 V	-15 V	33.33 mA	33.33 mA
aimtec AM1DS-0524SH30JZ	Through Hole	24 V	ITE (Commercial)	5.5 V	3000 V	105 ░C	-40 °C	0.77 in	0.4 "	10.2 mm	19.7 mm	6 mm	0.24 "	42 mA	85 %	4.5 V	1	Isolated Module
aimtec AM1DS-1215SH30Z	Through Hole	15 V	ITE (Commercial)	13.2 V	3000 V	85 °C	-40 °C			0.39 in	0.77 "	0.24 in		66.7 mA	75 %	10.8 V	1	Isolated Module						6 mm	10 mm	19.5 mm
aimtec AM1DS-0515DH40Z	Through Hole		ITE (Commercial)	5.5 V	4000 V	85 °C	-40 °C	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "		71 %	4.5 V	2	Isolated Module	15 V	-15 V	-15 V	33.33 mA	33.33 mA
aimtec AM1DS-0515SH52Z	Through Hole	15 V	ITE (Commercial)	5.5 V	5.2 kV	85 °C	-40 °C	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	66.7 mA	74 %	4.5 V	1	Isolated Module
aimtec AM1DS-0505SH60Z	Through Hole	5 V	ITE (Commercial)	5.5 V	6000 V	85 °C	-40 °C	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	200 mA	72 %	4.5 V	1	Isolated Module
aimtec AM1DS-0515SJZ	Through Hole	15 V	ITE (Commercial)	5.5 V	1.5 kV	105 C	-40 °C	0.77 in	0.38 in	9.6 mm	19.5 mm	6 mm	0.24 "	67 mA	83 %	4.5 V	1	Isolated Module									6-SIP Module, 4 Leads
