140734-2
ActiveTE Connectivity Raychem Cable Protection

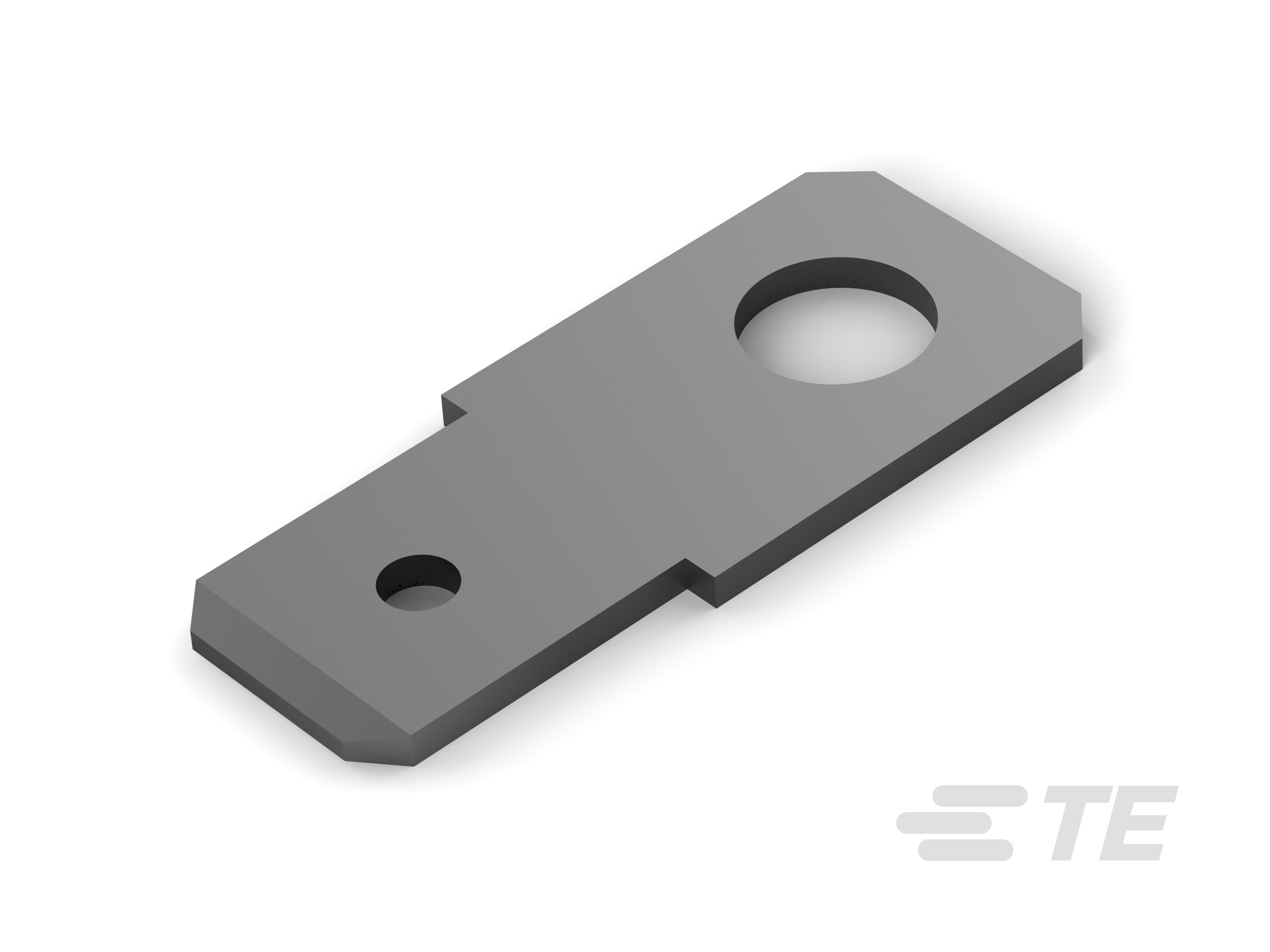

TERMINAL TAB FASTON 6,35 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
140734-2
ActiveTE Connectivity Raychem Cable Protection
TERMINAL TAB FASTON 6,35 ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 140734-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.756 in |
| Length - Overall [x] | 19.2 mm |
| Mounting Type | Board, Chassis |
| Tab Length | 0.311 in |
| Tab Length | 7.9 mm |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Rivet, Screw, Stud |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
140734 Series
0.250" (6.35mm) Quick Connect Male Screw, Rivet, Stud Connector Non-Insulated
