1-102241-1

Active

TE Connectivity Raychem Cable Protection

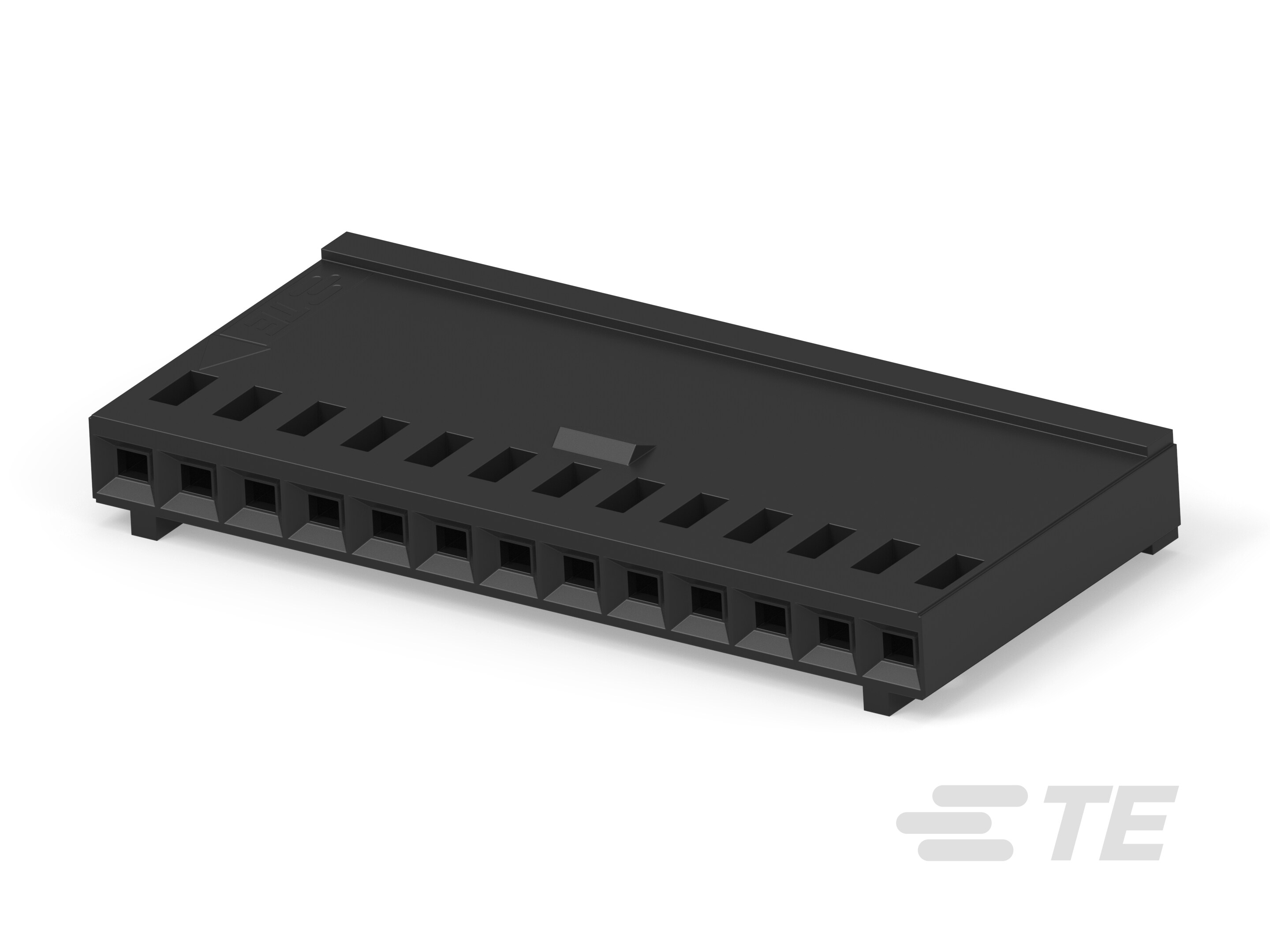

13 MODIV HSG COMP SR .100 POL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-102241-1

Active

TE Connectivity Raychem Cable Protection

13 MODIV HSG COMP SR .100 POL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-102241-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	13
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

102241 Series

Part	Pitch [x]	Pitch [x]	Mounting Type	Connector Type	Number of Positions	Contact Type	Number of Rows	Color	Contact Termination	Fastening Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Number of Positions
TE Connectivity Raychem Cable Protection 102241-9	2.54 mm	0.1 in	Free Hanging (In-Line)	Receptacle	11	Female Socket	1	Black	Crimp	Locking Ramp	Contacts Not Included	-65 ░C	105 ░C	Glass Filled Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 1-102241-1	2.54 mm	0.1 in	Free Hanging (In-Line)	Receptacle	13	Female Socket	1	Black	Crimp	Locking Ramp	Contacts Not Included	-65 ░C	105 ░C	Glass Filled Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 1-102241-8	2.54 mm	0.1 in	Free Hanging (In-Line)	Receptacle	20	Female Socket	1	Black	Crimp	Locking Ramp	Contacts Not Included	-65 ░C	105 ░C	Glass Filled Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 102241-2	2.54 mm	0.1 in	Free Hanging (In-Line)	Receptacle	4	Female Socket	1	Black	Crimp	Locking Ramp	Contacts Not Included	-65 ░C	105 ░C	Glass Filled Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 1-102241-4	2.54 mm	0.1 in	Free Hanging (In-Line)	Receptacle		Female Socket	1	Black	Crimp	Locking Ramp	Contacts Not Included	-65 ░C	105 ░C	Glass Filled Nylon Polyamide (PA)	16
TE Connectivity Raychem Cable Protection 1-102241-6	2.54 mm	0.1 in	Free Hanging (In-Line)	Receptacle	18	Female Socket	1	Black	Crimp	Locking Ramp	Contacts Not Included	-65 ░C	105 ░C	Glass Filled Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 102241-7	2.54 mm	0.1 in	Free Hanging (In-Line)	Receptacle	9	Female Socket	1	Black	Crimp	Locking Ramp	Contacts Not Included
TE Connectivity Raychem Cable Protection 2-102241-0	2.54 mm	0.1 in	Free Hanging (In-Line)	Receptacle	22 positions	Female Socket	1	Black	Crimp	Locking Ramp	Contacts Not Included	-65 ░C	105 ░C	Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4000	$ 1.00
Newark	Each	2500	$ 1.03

Description

General part information

102241 Series

13 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
