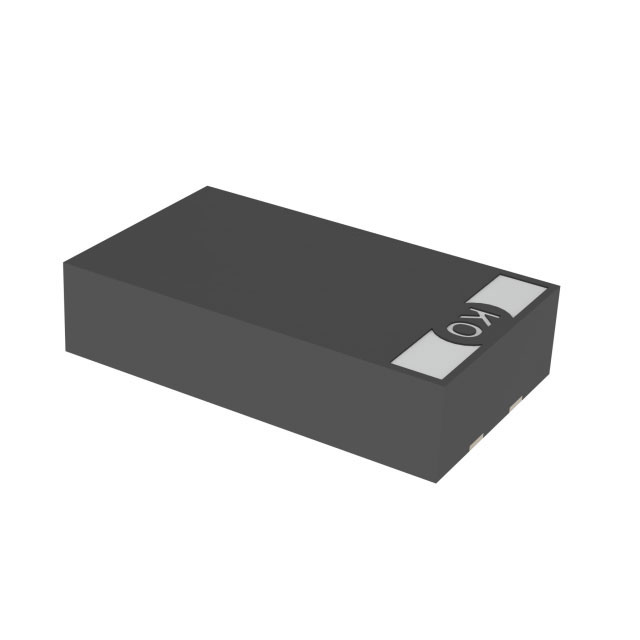

T528B277M2R5APE006
ActiveKEMET
CAP TANT POLY 270UF 2.5V 1411
Deep-Dive with AI
Search across all available documentation for this part.
T528B277M2R5APE006
ActiveKEMET
CAP TANT POLY 270UF 2.5V 1411
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T528B277M2R5APE006 |
|---|---|
| Capacitance | 270 µF |
| ESR (Equivalent Series Resistance) | 6 mOhm |
| Features | General Purpose |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Lifetime @ Temp. | 2000 Hrs |
| Manufacturer Size Code | B |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.60 | |
| 10 | $ 2.76 | |||
| 50 | $ 2.50 | |||
| 100 | $ 2.15 | |||
| 500 | $ 1.68 | |||
| 1000 | $ 1.57 | |||
| Digi-Reel® | 1 | $ 3.60 | ||
| 10 | $ 2.76 | |||
| 50 | $ 2.50 | |||
| 100 | $ 2.15 | |||
| 500 | $ 1.68 | |||
| 1000 | $ 1.57 | |||
| Tape & Reel (TR) | 2000 | $ 1.56 | ||
| 4000 | $ 1.49 | |||
| 6000 | $ 1.46 | |||
| Newark | Each (Supplied on Full Reel) | 2000 | $ 1.81 | |
| 4000 | $ 1.68 | |||
| 8000 | $ 1.57 | |||
| 12000 | $ 1.51 | |||
| 20000 | $ 1.49 | |||
Description
General part information
T528B Series
270 µF Molded Tantalum Polymer Capacitor 2.5 V 1411 (3528 Metric) 6mOhm @ 100kHz
