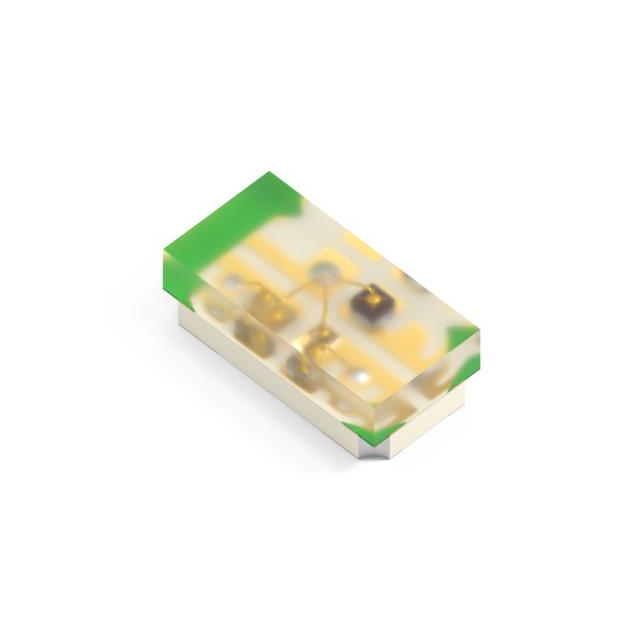

XZCMECBDDGK53W
ActiveSunLED
LED RGB CLEAR 4SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZCMECBDDGK53W
ActiveSunLED
LED RGB CLEAR 4SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZCMECBDDGK53W |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 2 mA |
| Current - Test [custom] | 2 mA |
| Current - Test [custom] | 2 mA |
| Height (Max) [Max] [z] | 0.65 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.6 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 14 mcd |
| Millicandela Rating [custom] | 69 mcd |
| Millicandela Rating [custom] | 9 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Supplier Device Package | 4-SMD |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 2.65 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.65 V |
| Voltage - Forward (Vf) (Typ) [custom] | 1.8 V |
| Wavelength - Dominant | 465 nm, 621 nm, 525 nm |
| Wavelength - Peak [custom] | 630 nm |
| Wavelength - Peak [custom] | 460 nm |
| Wavelength - Peak [custom] | 515 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.69 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.30 | |||
| 1000 | $ 0.23 | |||
| 2000 | $ 0.22 | |||
| Digi-Reel® | 1 | $ 0.69 | ||
| 10 | $ 0.45 | |||
| 100 | $ 0.30 | |||
| 1000 | $ 0.23 | |||
| 2000 | $ 0.22 | |||
| Tape & Reel (TR) | 4000 | $ 0.22 | ||
| 8000 | $ 0.21 | |||
| 12000 | $ 0.21 | |||
| 28000 | $ 0.20 | |||
Description
General part information
XZCMECBDDGK53 Series
Red, Green, Blue (RGB) 621nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 1.8V Red, 2.65V Green, 2.65V Blue 0603 (1608 Metric)
