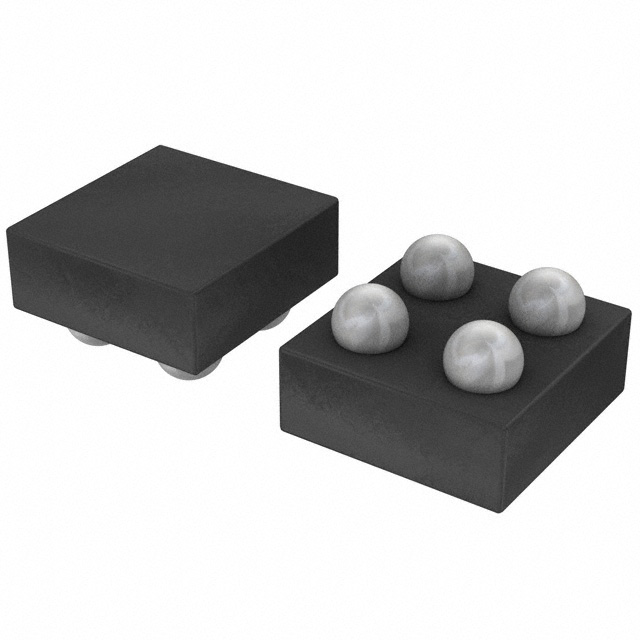

MAX16074RS17D2+T
ActiveAnalog Devices Inc./Maxim Integrated
IC SUPERVISOR 1 CHANNEL 4UCSP
Deep-Dive with AI
Search across all available documentation for this part.
MAX16074RS17D2+T
ActiveAnalog Devices Inc./Maxim Integrated
IC SUPERVISOR 1 CHANNEL 4UCSP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX16074RS17D2+T | MAX16074 Series |
|---|---|---|
| Mounting Type | Surface Mount | Surface Mount |
| Number of Voltages Monitored | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output | Open Drain or Open Collector | Open Drain or Open Collector |
| Package / Case | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA |
| Reset | Active Low | Active Low |
| Reset Timeout [Min] | 34 ms | 34 - 140 ms |
| Supplier Device Package | 4-UCSP (1x1) | 4-UCSP (1x1) |
| Type | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset |
| Voltage - Threshold | 1.67 V | 1.58 - 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.99 | |
| 10 | $ 2.63 | |||
| 25 | $ 2.28 | |||
| 100 | $ 1.88 | |||
| 250 | $ 1.68 | |||
| 500 | $ 1.57 | |||
| 1000 | $ 1.47 | |||
| Digi-Reel® | 1 | $ 3.99 | ||
| 10 | $ 2.63 | |||
| 25 | $ 2.28 | |||
| 100 | $ 1.88 | |||
| 250 | $ 1.68 | |||
| 500 | $ 1.57 | |||
| 1000 | $ 1.47 | |||
| Tape & Reel (TR) | 2500 | $ 1.36 | ||
| 5000 | $ 1.30 | |||
| 7500 | $ 1.27 | |||
MAX16074 Series
IC SUPERVISOR 1 CHANNEL 4UCSP
| Part | Output | Voltage - Threshold | Mounting Type | Type | Number of Voltages Monitored | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Reset Timeout [Min] | Package / Case | Reset |
|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX16074RS19D2+ | Open Drain or Open Collector | 1.9 V | Surface Mount | Simple Reset/Power-On Reset | 1 | 4-UCSP (1x1) | 85 °C | -40 °C | 34 ms | 4-WFBGA, CSPBGA | Active Low |
Analog Devices Inc./Maxim Integrated MAX16074RS15D3+T | Open Drain or Open Collector | 1.58 V | Surface Mount | Simple Reset/Power-On Reset | 1 | 4-UCSP (1x1) | 85 °C | -40 °C | 140 ms | 4-WFBGA, CSPBGA | Active Low |
Analog Devices Inc./Maxim Integrated MAX16074RS17D2+T | Open Drain or Open Collector | 1.67 V | Surface Mount | Simple Reset/Power-On Reset | 1 | 4-UCSP (1x1) | 85 °C | -40 °C | 34 ms | 4-WFBGA, CSPBGA | Active Low |
Description
General part information
MAX16074 Series
Supervisor Open Drain or Open Collector 1 Channel 4-UCSP (1x1)
Documents
Technical documentation and resources
No documents available
