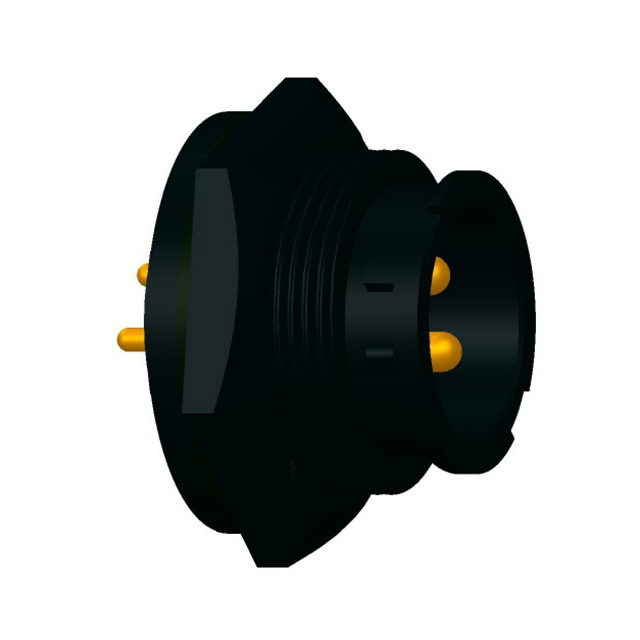

CC-03PMMP-LC7001

Active

Amphenol LTW

CONN RCPT MALE 3POS GOLD SOLDER

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 3POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	CC-03PMMP-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	C
Shielding	Unshielded
Termination	Solder

Part	Mounting Type	Shell Size - Insert	Mounting Feature	Termination	Shielding	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Primary Material	Fastening Type	Ingress Protection	Connector Type	Insert Material	Current Rating (Amps)	Orientation	Color
Amphenol LTW CC-03PMMP-LC7001	Panel Mount Through Hole	C	Bulkhead - Front Side Nut	Solder	Unshielded	Copper Alloy	-40 °C	105 ░C	Gold	Plastic	Bayonet Lock	IP67 - Dust Tight Waterproof	Male Pins Receptacle	Polyamide (PA) Nylon Glass Filled	20 A	Keyed	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder
