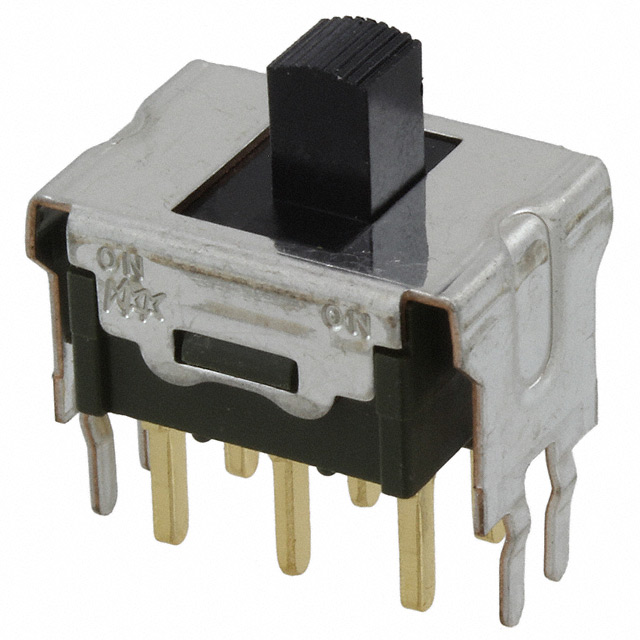

MS22ASA13/U

Obsolete

NKK Switches

SWITCH SLIDE DPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH SLIDE DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	MS22ASA13/U

Actuator Length [z]	5.1 mm
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Type	Standard
Circuit	DPDT
Contact Finish	Gold
Contact Material	Silver Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Switch Travel [custom]	2.2 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Electrical Life	Switch Travel [custom]	Mechanical Life	Voltage Rating - AC	Actuator Length [z]	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Features	Termination Style	Contact Finish	Switch Function	Contact Material	Current Rating (Amps)	Mounting Type	Contact Timing	Circuit	Actuator Type
NKK Switches MS22ASA13/U	25000 Steps	2.2 mm	100000 Cycles	125 V	5.1 mm	-30 ░C	85 °C	Polybutylene Terephthalate (PBT) Glass Filled	Epoxy Sealed Terminals	PC Pin	Gold	On-On	Silver Alloy	6 A	Through Hole	Non-Shorting	DPDT	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Slide Switch DPDT Through Hole
