000-53150

Active

AMPHENOL RF

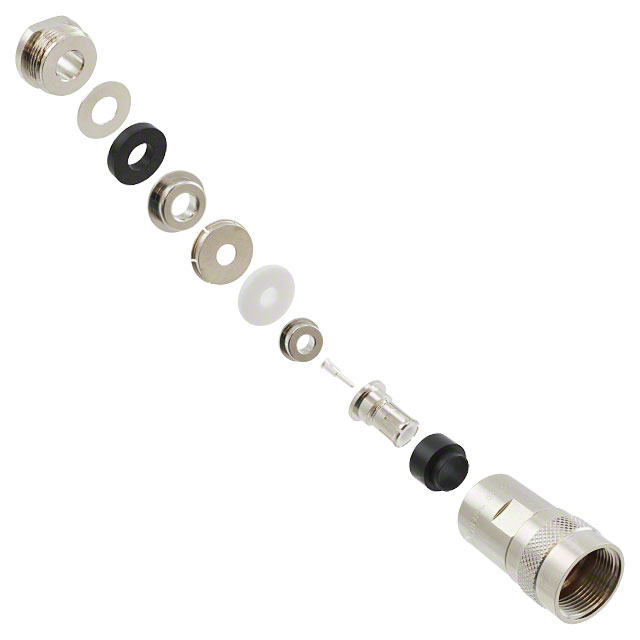

CONN TRIAX PLUG STR 50OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

000-53150

Active

AMPHENOL RF

CONN TRIAX PLUG STR 50OHM SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-53150	000-53 Series

Adapter Series	-	Triaxial to Triaxial
Adapter Type	-	Jack to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58	392, 391, Belden 1620, 1859, 9292, 8213, RG-11, 7731, 11A, 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, 302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393, Essex 21-527
Center Contact Material	Brass	Brass, Beryllium Copper
Center Contact Plating	Silver	Silver
Center Gender	-	Female to Female
Connector Style	Triaxial	Triaxial
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Conversion Type	-	Same Series
Convert From (Adapter End)	-	Female Socket, Triaxial Jack
Convert To (Adapter End)	-	Triaxial Jack, Female Socket
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Frequency - Max	-	300 - 500 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Connector, 2 Washers, 1 Contact, 1 Clamp, 1 Gasket, 2 Braid Clamps, 3 Insulators	1 Insulator, 1 Connector, 1 Clamp, 1 Gasket, 2 Washers, 2 Braid Clamps, 1 Contact, 3 Insulators, 1 Nut, 1 Lockwasher
Ingress Protection	Weatherproof	Weatherproof
Mating Cycles	500	500
Mounting Feature	-	Bulkhead
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 °C
Shield Termination	Clamp	Clamp
Style	-	Straight
Voltage Rating	5000 V	5000 V

000-53 Series

CONN TRIAX PLUG STR 50OHM SOLDER

Part	Body Finish	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Center Contact Material	Shield Termination	Includes	Housing Color	Mounting Type	Dielectric Material	Mating Cycles	Connector Type	Cable Group	Contact Termination	Ingress Protection	Body Material	Impedance	Center Contact Plating	Voltage Rating	Adapter Series	Style	Center Gender	Convert From (Adapter End)	Conversion Type	Convert To (Adapter End)	Mounting Feature	Adapter Type	Frequency - Max [Max]
AMPHENOL RF 000-53175	Nickel	Triaxial	85 °C	-40 °C	1	Brass	Clamp	1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Insulator, 2 Braid Clamps, 2 Washers	Silver	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	500	Male Pin, Plug	11A, 1859, 391, 392, 7731, 8213, 9292, Belden 1620, RG-11	Solder	Weatherproof	Brass	50 Ohms	Silver	5000 V
AMPHENOL RF 000-53150	Nickel	Triaxial	165 °C	-65 ░C	1	Brass	Clamp	1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 2 Braid Clamps, 2 Washers, 3 Insulators	Silver	Free Hanging (In-Line)		500	Male Pin, Plug	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Solder	Weatherproof	Brass	50 Ohms	Silver	5000 V
AMPHENOL RF 000-53225	Nickel		165 °C	-65 ░C		Beryllium Copper		1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut			Polytetrafluoroethylene (PTFE)						Brass	50 Ohms	Silver		Triaxial to Triaxial	Straight	Female to Female	Female Socket, Triaxial Jack	Same Series	Female Socket, Triaxial Jack	Bulkhead	Jack to Jack	500 MHz
AMPHENOL RF 000-53250	Nickel	Triaxial			1	Brass	Clamp		Silver	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	500	Male Pin, Plug	213, 214, 225, 302, 393, 87, 8A, 9, 9A, 9B, RG-8	Solder		Brass	50 Ohms	Silver	5000 V									300 MHz
AMPHENOL RF 000-53100	Nickel	Triaxial			1	Brass	Clamp	1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 2 Braid Clamps, 2 Washers, 3 Insulators	Silver	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	500	Male Pin, Plug	Essex 21-527	Solder	Weatherproof	Brass	50 Ohms	Silver	5000 V									300 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 139.74
		10	$ 128.23
		25	$ 123.30
		50	$ 119.19

Description

General part information

000-53 Series

Triaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources
