000-53225

Active

AMPHENOL RF

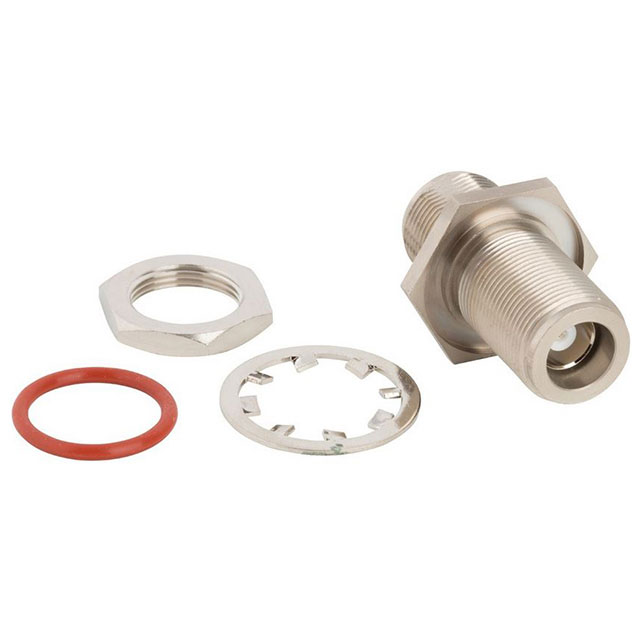

CONN ADAPT JACK-JACK TRIAX 50OHM

Deep-Dive with AI

Search across all available documentation for this part.

000-53225

Active

AMPHENOL RF

CONN ADAPT JACK-JACK TRIAX 50OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

000-53 Series

Adapter Coaxial Connector Triaxial Jack, Female Socket To Triaxial Jack, Female Socket 50 Ohms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-53225	000-53 Series

Adapter Series	Triaxial to Triaxial	Triaxial to Triaxial
Adapter Type	Jack to Jack	Jack to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	-	392, 391, Belden 1620, 1859, 9292, 8213, RG-11, 7731, 11A, 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, 302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393, Essex 21-527
Center Contact Material	Beryllium Copper	Brass, Beryllium Copper
Center Contact Plating	Silver	Silver
Center Gender	Female to Female	Female to Female
Connector Style	-	Triaxial
Connector Type	-	Male Pin, Plug
Contact Termination	-	Solder
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	Female Socket, Triaxial Jack	Female Socket, Triaxial Jack
Convert To (Adapter End)	Triaxial Jack, Female Socket	Triaxial Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	500 MHz	300 - 500 MHz
Housing Color	-	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher	1 Insulator, 1 Connector, 1 Clamp, 1 Gasket, 2 Washers, 2 Braid Clamps, 1 Contact, 3 Insulators, 1 Nut, 1 Lockwasher
Ingress Protection	-	Weatherproof
Mating Cycles	-	500
Mounting Feature	Bulkhead	Bulkhead
Mounting Type	-	Free Hanging (In-Line)
Number of Ports	-	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 °C
Shield Termination	-	Clamp
Style	Straight	Straight
Voltage Rating	-	5000 V

000-53 Series

CONN TRIAX PLUG STR 50OHM SOLDER

Part	Body Finish	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Center Contact Material	Shield Termination	Includes	Housing Color	Mounting Type	Dielectric Material	Mating Cycles	Connector Type	Cable Group	Contact Termination	Ingress Protection	Body Material	Impedance	Center Contact Plating	Voltage Rating	Adapter Series	Style	Center Gender	Convert From (Adapter End)	Conversion Type	Convert To (Adapter End)	Mounting Feature	Adapter Type	Frequency - Max [Max]
AMPHENOL RF 000-53175	Nickel	Triaxial	85 °C	-40 °C	1	Brass	Clamp	1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Insulator, 2 Braid Clamps, 2 Washers	Silver	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	500	Male Pin, Plug	11A, 1859, 391, 392, 7731, 8213, 9292, Belden 1620, RG-11	Solder	Weatherproof	Brass	50 Ohms	Silver	5000 V
AMPHENOL RF 000-53150	Nickel	Triaxial	165 °C	-65 ░C	1	Brass	Clamp	1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 2 Braid Clamps, 2 Washers, 3 Insulators	Silver	Free Hanging (In-Line)		500	Male Pin, Plug	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Solder	Weatherproof	Brass	50 Ohms	Silver	5000 V
AMPHENOL RF 000-53225	Nickel		165 °C	-65 ░C		Beryllium Copper		1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut			Polytetrafluoroethylene (PTFE)						Brass	50 Ohms	Silver		Triaxial to Triaxial	Straight	Female to Female	Female Socket, Triaxial Jack	Same Series	Female Socket, Triaxial Jack	Bulkhead	Jack to Jack	500 MHz
AMPHENOL RF 000-53250	Nickel	Triaxial			1	Brass	Clamp		Silver	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	500	Male Pin, Plug	213, 214, 225, 302, 393, 87, 8A, 9, 9A, 9B, RG-8	Solder		Brass	50 Ohms	Silver	5000 V									300 MHz
AMPHENOL RF 000-53100	Nickel	Triaxial			1	Brass	Clamp	1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 2 Braid Clamps, 2 Washers, 3 Insulators	Silver	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	500	Male Pin, Plug	Essex 21-527	Solder	Weatherproof	Brass	50 Ohms	Silver	5000 V									300 MHz
