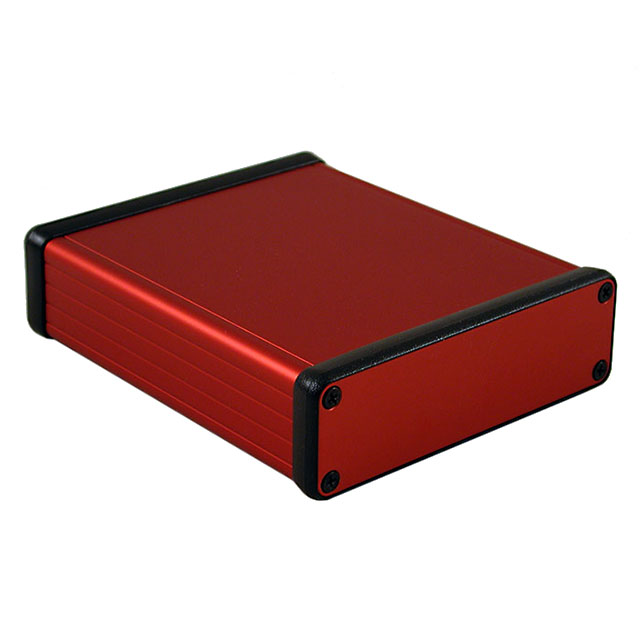

1455L1201RD

Active

Hammond Manufacturing

BOX ALUM RED 4.72"L X 4.06"W

Deep-Dive with AI

Search across all available documentation for this part.

1455L1201RD

Active

Hammond Manufacturing

BOX ALUM RED 4.72"L X 4.06"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.96
		5	$ 29.03
		10	$ 27.14
		25	$ 24.82
		50	$ 23.43
		100	$ 25.55
		250	$ 25.17

Description

General part information

1455 Series

Box Aluminum Red End Panel(s) 4.724" L x 4.055" W (120.00mm x 103.00mm) X 1.201" (30.51mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1455L1201RD	1455 Series

Accessory Type	-	Mounting Brackets, Flange
Area (L x W)	124 cm˛	12.9 - 275 in²
Area (L x W)	19.2 in˛	3.95 - 42.6 in˛
Area (L x W)	-	83 cm²
Area (L x W)	-	9 - 35 in²
Area (L x W)	-	58.1 - 226 cm²
Area (L x W)	-	85 - 363 cm²
Area (L x W)	-	13.1 - 56.3 in²
Area (L x W)	-	6.7 in²
Color	Red	Blue, Black, Clear, Red, Translucent - Red, Natural, Translucent - Blue, Yellow, Unpainted
Container Type	Box	Box
Design	End Panel(s)	End Panel(s), Cover Included
Drive Type	-	Phillips
Features	Card Guides	Card Guides, Mounting Flange, Self Tapping
For Use With/Related Products	-	1455Q Series, 1455P Series, 1455C Series, 1455N Series, 1455J Series, 1455K, 1455T Series, 1455R Series, 1455B Series, 1455A Series, 1455D Series, 1455NC Series
Height	-	11.99 - 60.76 mm
Height	-	0.472 - 2.392 in
Height [diameter]	1.201 in	1.201 - 1.693 in
Height [diameter]	30.51 mm	30.51 - 43 mm
Length - Overall	-	0.375 in
Length - Overall	-	9.53 mm
Length - Overall	-	0.375 in
Material	Aluminum	Aluminum, Polycarbonate (PC), ABS
Plating	-	Black Oxide
Screw Head Type	-	Flat Head
Size / Dimension	120 mm, 103 mm	103 - 120 mm
Size / Dimension	-	1.186 - 165 mm
Size / Dimension	-	0.057 - 0.453 "
Size / Dimension	-	3.068 - 222 mm
Size / Dimension	-	0.059 - 11.51 mm
Size / Dimension	-	77.93 - 81.13 mm
Size / Dimension	-	1.5 - 8.99 mm
Size / Dimension	-	30.12 - 42.93 mm
Size / Dimension [x]	4.724 "	1.67 - 8.74 in
Size / Dimension [y]	4.055 in	0.472 - 6.496 in
Thickness	1.52 mm	1.2 - 2.29 mm
Thickness	0.06 in	0.047 - 0.09 in
Thread Size	-	#6
Type	-	Panel, End
Weight	0.4 lb	0.1 - 1.3 lb
Weight	181.44 g	45.36 - 589.7 g

1455 Series

END PANEL ALUM BLUE 10/PACK

...

Part	Material	For Use With/Related Products	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Container Type	Height [diameter]	Height [diameter]	Thickness	Thickness	Design	Area (L x W)	Area (L x W)	Plating	Weight	Weight	Features	Size / Dimension	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1455QALBU-10	Aluminum	1455Q Series	Blue	4.913 in	50.9 mm	0.057 "	124.79 mm	1.45 mm	2.004 in	Panel, End
Hammond Manufacturing 1455L802BK	Aluminum		Black								Box	1.201 in	30.51 mm	0.059 in	1.5 mm	End Panel(s)	12.9 in²	83 cm²
Hammond Manufacturing 1455PAL-10	Aluminum	1455P Series	Clear	4.933 "	30.43 mm	0.059 in	125.3 mm	1.5 mm	1.198 "	Panel, End
Hammond Manufacturing 1455MSFL100BK																			Black Oxide
Hammond Manufacturing 1455L1201RD	Aluminum		Red	4.724 "					4.055 in		Box	1.201 in	30.51 mm	0.06 in	1.52 mm	End Panel(s)	124 cm˛			0.4 lb	181.44 g	Card Guides	103 mm, 120 mm	19.2 in˛
Hammond Manufacturing 1455L2202BK	Aluminum		Black	8.661 in	103 mm		219.99 mm		4.055 in		Box	1.201 in	30.51 mm	0.06 in	1.52 mm	End Panel(s)				0.66 lb	299.37 g	Card Guides			35 in²	226 cm²
Hammond Manufacturing 1455KPLTRD	Polycarbonate (PC)		Translucent - Red	3.194 "	46.13 mm	0.354 in	81.13 mm	8.99 mm	1.816 "
Hammond Manufacturing 1455CPLRED	ABS	1455C Series	Red	2.249 "	26.14 mm	0.354 in	57.12 mm	8.99 mm	1.029 "
Hammond Manufacturing 1455L1201BK	Aluminum		Black	4.724 "					4.055 in		Box	1.201 in	30.51 mm	0.06 in	1.52 mm	End Panel(s)	124 cm˛			0.4 lb	181.44 g	Card Guides	103 mm, 120 mm	19.2 in˛
Hammond Manufacturing 1455L1601	Aluminum		Natural	6.299 "	103 mm		159.99 mm		4.055 in		Box	1.201 in	30.51 mm	0.06 in	1.52 mm	End Panel(s)	165 cm˛			0.5 lbs	226.8 g	Card Guides		25.5 in˛
