ST1PS01EJR
Active400 MA NANO-QUIESCENT SYNCHRONOUS STEP-DOWN CONVERTER WITH DIGITAL VOLTAGE SELECTION AND POWER GOOD
Deep-Dive with AI
Search across all available documentation for this part.
ST1PS01EJR
Active400 MA NANO-QUIESCENT SYNCHRONOUS STEP-DOWN CONVERTER WITH DIGITAL VOLTAGE SELECTION AND POWER GOOD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ST1PS01EJR |
|---|---|
| Current - Output | 400 mA |
| Frequency - Switching | 2 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | FCBGA, 8-UFBGA |

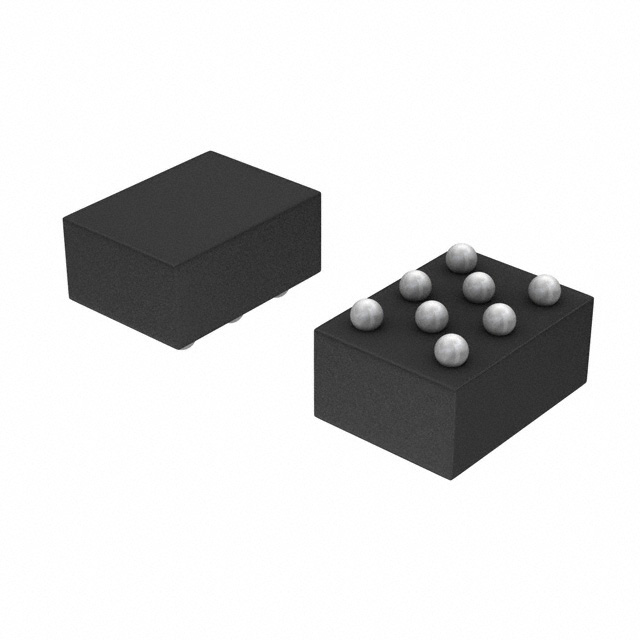

| Supplier Device Package | 8-FlipChip (1.11x1.41) |
| Supplier Device Package [x] | 1.11 |
| Supplier Device Package [y] | 1.41 |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 1.8 V |
| Voltage - Output (Min/Fixed) | 2.7 V, 3.3 V, 1.8 V, 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ST1PS01 Series
This converter is specifically designed for applications where high efficiency, PCB size and thickness are the key factors. The output voltage can be set using two digital control inputs, a VOUTfrom 0.625 V to 3.3 V can be dynamically selected. Thanks to the enhanced PCC (peak current control) the ST1PS01 reaches very high efficiency conversion using just a 2.2 µH inductor and two small capacitors. Advanced design circuitry is implemented to minimize the quiescent current. The device is available in Flip-Chip package.
