ZFS-8500-WW

Active

JKL Components Corp.

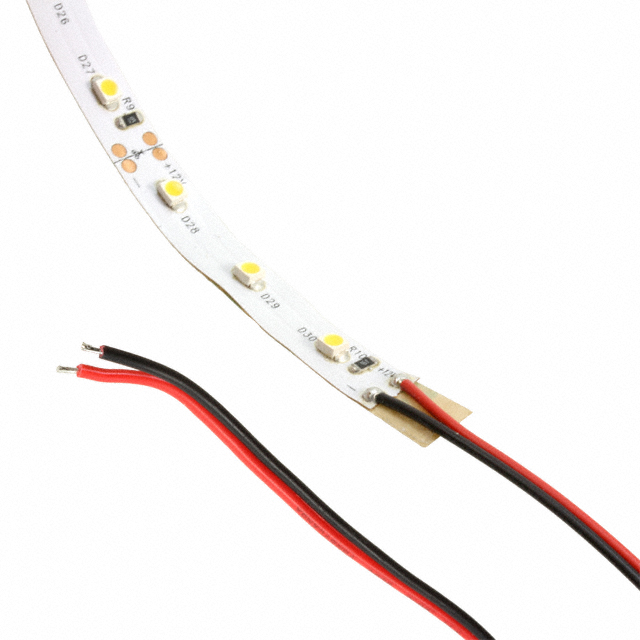

LED STRIP, 5 M, 300 LEDS, WARM WHITE, 12 VDC, 21.6 W, NOT RATED

Search across all available documentation for this part.

Active

JKL Components Corp.

LED STRIP, 5 M, 300 LEDS, WARM WHITE, 12 VDC, 21.6 W, NOT RATED

Technical Specifications

Parameters and characteristics for this part

Specification	ZFS-8500-WW

CCT (K)	3050 K
Color	White, Warm
Configuration	Linear Light Strip, Flexible
Current - Max [Max]	1.8 A
Current - Test	1.8 A
Height [z]	2.43 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	43 lm/W
Luminous Flux @ Current/Temperature	936 lm
Size / Dimension	50.00mm L per Segment
Size / Dimension [x]	5000 mm
Size / Dimension [y]	8 mm
Type	LED Engine
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	12 V

Part	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	CCT (K)	Lens Type	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Height [z]	Current - Test	Current - Max [Max]	Configuration	Luminous Flux @ Current/Temperature	Color	Type
JKL Components Corp. ZFS-8500-WW	43 lm/W	12 V	3050 K	Flat	120 °	8 mm	5000 mm	50.00mm L per Segment	2.43 mm	1.8 A	1.8 A	Flexible Linear Light Strip	936 lm	Warm White	LED Engine
JKL Components Corp. ZFS-8500-WW/SEC	43 lm/W	12 V	3050 K	Flat	120 °	8 mm	500 mm		2.43 mm	1.8 A	1.8 A	Flexible Linear Light Strip	936 lm	Warm White	LED Engine
JKL Components Corp. ZFS-8500-CW/SEC		12 V	6000 K	Flat	120 °	8 mm	500 mm		2.43 mm	1.8 A	1.8 A	Flexible Linear Light Strip	1092 lm	Cool White	LED Engine
JKL Components Corp. ZFS-8500-CW		12 V	6000 K	Flat	120 °	8 mm	5000 mm	50.00mm L per Segment	2.43 mm	1.8 A	1.8 A	Flexible Linear Light Strip	1092 lm	Cool White	LED Engine

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Engine - White, Warm Linear Light Strip, Flexible
