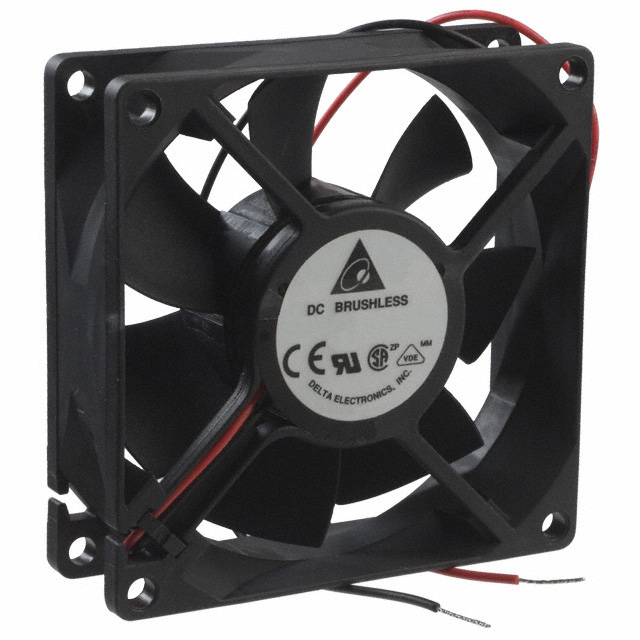

AFB0805L

Active

Delta Electronics

FAN AXIAL 80X25.4MM 5VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 80X25.4MM 5VDC WIRE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 80mm L x 80mm H Ball 27.9 CFM (0.781m³/min) 2 Wire Leads

Part	Fan Type	Power (Watts)	Air Flow	Air Flow	RPM	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Material - Blade	Width [y]	Approval Agency	Weight	Weight	Noise	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Features	Static Pressure	Static Pressure	Voltage - Rated	Current Rating (Amps)	Termination
Delta Electronics AFB0805H-R00	Tubeaxial	2.15 W	35.3 CFM	0.988 mł/min	3000 RPM	Plastic	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	80 mm	80 mm	Plastic	25.4 mm	CE, CSA, UL, VDE	80 g	0.176 lb	31 dB(A)	Ball	4.5 V	5.5 V	Locked Rotor Sensor	39.6 Pa	0.159 in H2O	5 V	430 mA	3 Wire Leads
Delta Electronics AFB0805H	Tubeaxial	2.15 W	35.3 CFM	0.988 mł/min	3000 RPM	Plastic	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	80 mm	80 mm	Plastic	25.4 mm	CE, CSA, UL, VDE	80 g	0.176 lb	31 dB(A)	Ball	4.5 V	5.5 V		39.6 Pa	0.159 in H2O	5 V	430 mA	2 Wire Leads
Delta Electronics AFB0805L	Tubeaxial	1.2 W	27.9 CFM	0.781 m³/min	2400 RPM	Plastic	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	80 mm	80 mm	Plastic	25.4 mm	CE, CSA, UL, VDE	80 g	0.176 lb	25 dB(A)	Ball	4.5 V	5.5 V		25.5 Pa	0.102 in H2O	5 V	0.24 A	2 Wire Leads
