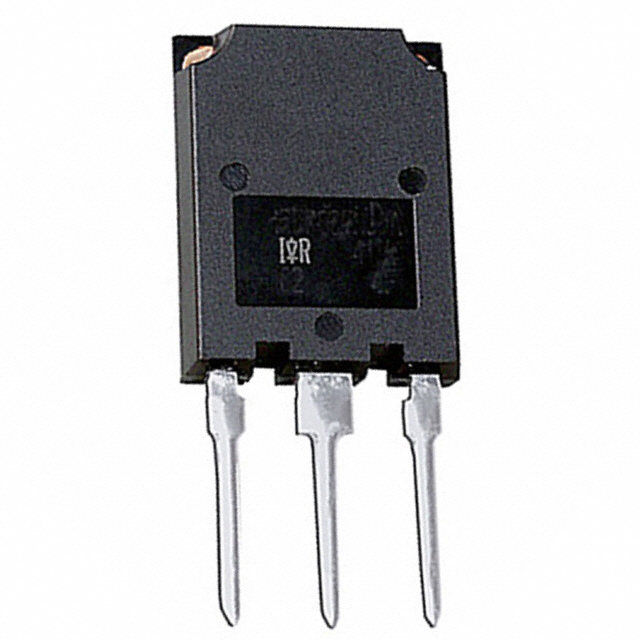

IRG4PSC71KPBF

Obsolete

Infineon Technologies

IGBT 600V 85A 350W SUPER247

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IGBT 600V 85A 350W SUPER247

Technical Specifications

Parameters and characteristics for this part

Specification	IRG4PSC71KPBF

Current - Collector (Ic) (Max) [Max]	85 A
Current - Collector Pulsed (Icm)	200 A
Gate Charge	340 nC
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-274AA
Power - Max [Max]	350 W
Supplier Device Package	SUPER-247™ (TO-274AA)
Switching Energy	790 µJ, 1.98 mJ
Td (on/off) @ 25°C [custom]	54 ns
Td (on/off) @ 25°C [custom]	34 ns
Test Condition	15 V, 60 A, 5 Ohm, 480 V
Vce(on) (Max) @ Vge, Ic	2.3 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C [custom]	Gate Charge	Current - Collector Pulsed (Icm)	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Switching Energy	Power - Max [Max]	Test Condition	Vce(on) (Max) @ Vge, Ic	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	Package / Case
Infineon Technologies IRG4PSC71KPBF	54 ns	34 ns	340 nC	200 A	SUPER-247™ (TO-274AA)	600 V	Through Hole	1.98 mJ 790 µJ	350 W	5 Ohm 15 V 60 A 480 V	2.3 V	-55 °C	150 °C	85 A	TO-274AA
Infineon Technologies IRG4PSC71KPBF	54 ns	34 ns	340 nC	200 A	SUPER-247™ (TO-274AA)	600 V	Through Hole	1.98 mJ 790 µJ	350 W	5 Ohm 15 V 60 A 480 V	2.3 V	-55 °C	150 °C	85 A	TO-274AA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT 600 V 85 A 350 W Through Hole SUPER-247™ (TO-274AA)
