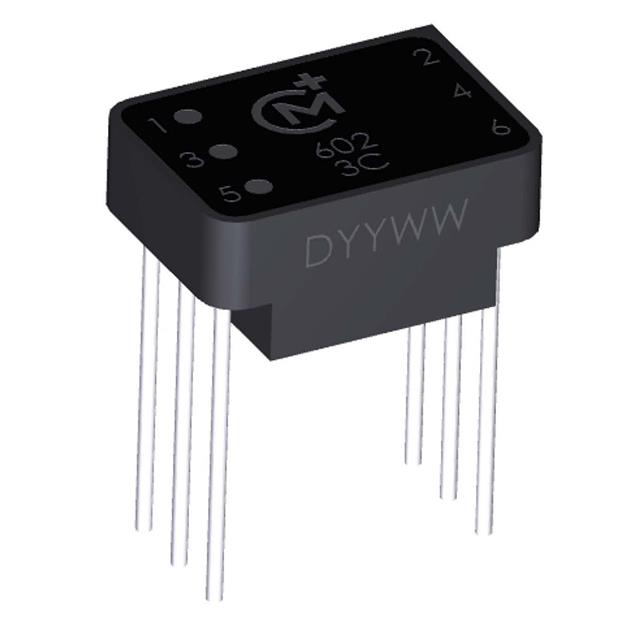

76601/2C - 76600/1C

76601/2C

Active
Murata Power Solutions Inc.

PULSE TRANSFORMER, PCB, 0.6, 492 ΜH, 0.8 OHM, 8.5 VΜS, 500 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
76601/2C - 76600/1C

76601/2C

Active
Murata Power Solutions Inc.

PULSE TRANSFORMER, PCB, 0.6, 492 ΜH, 0.8 OHM, 8.5 VΜS, 500 V

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification76601/2C76601 Series
ET (Volt-Time)-5.5 - 50.5 VµS
Height - Seated (Max)-0.26 in
Height - Seated (Max)-6.6 mm
Height - Seated (Max)-6.35 mm
Height - Seated (Max)-0.25 in
Inductance-11.7 - 492 µH
Mounting Type-Through Hole
null-
Operating Temperature-70 °C
Operating Temperature-0 °C
Size / Dimension-0.5 in
Size / Dimension-8.89 mm
Size / Dimension-12.7 mm
Size / Dimension-0.35 "
Transformer Type-General Purpose
Turns Ratio - Primary:Secondary-1:1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 2.05
5$ 2.03
25$ 2.00
50$ 1.95
100$ 1.85
250$ 1.73
500$ 1.62
1000$ 1.52
NewarkEach 50$ 2.03
100$ 1.98
250$ 1.89
500$ 1.77
1000$ 1.70

76601 Series

PULSE TRANSFORMER, PCB, 0.6, 492 ΜH, 0.8 OHM, 8.5 VΜS, 500 V

PartET (Volt-Time)Height - Seated (Max) [Max] [z]Height - Seated (Max) [Max] [z]Transformer TypeOperating Temperature [Max]Operating Temperature [Min]Turns Ratio - Primary:SecondaryMounting TypeSize / Dimension [x]Size / Dimension [y]Size / Dimension [x]Size / Dimension [y]InductanceHeight - Seated (Max)Height - Seated (Max) [Max]
Murata Power Solutions Inc.
76601/2C
8.5 VµS
0.26 in
6.6 mm
General Purpose
70 °C
0 °C
1:1
Through Hole
0.5 in
8.89 mm
12.7 mm
0.35 "
492 µH
Murata Power Solutions Inc.
76601/3C
5.5 VµS
0.26 in
6.6 mm
General Purpose
70 °C
0 °C
1:1
Through Hole
0.5 in
8.89 mm
12.7 mm
0.35 "
219 µH
Murata Power Solutions Inc.
76601/2C
Murata Power Solutions Inc.
76601/24HVC
50.5 VµS
General Purpose
70 °C
0 °C
1:1
Through Hole
0.5 in
8.89 mm
12.7 mm
0.35 "
11.7 mH
6.35 mm
0.25 in
Murata Power Solutions Inc.
76601/20C
General Purpose
70 °C
0 °C
1:1
Through Hole
0.5 in
8.89 mm
12.7 mm
0.35 "
20.1 µH
6.35 mm
0.25 in
Murata Power Solutions Inc.
76601/3C

Description

General part information

76601 Series

The 76601/2C is a general purpose PCB-mount Pulse Transformer suitable for applications include line coupling, impedance-matching and isolating. This transformer can also be used in small isolated power supplies or as common-mode chokes in filtering applications.
