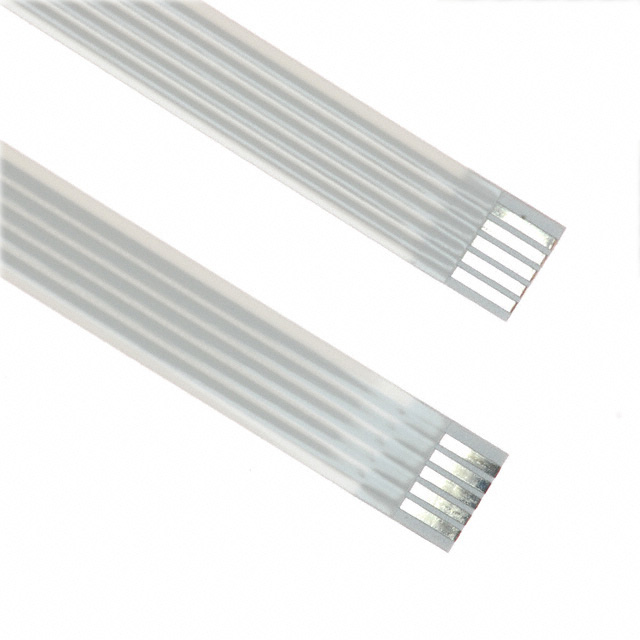

100R5-102B

Active

Parlex USA LLC

CABLE FFC/FPC 5POS 1MM 4"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 5POS 1MM 4"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100R5-102B	100R5 Series

Cable Type	FPC, FFC	FPC, FFC
Length	4 in	2 - 18 in
Length	101.6 mm	50.8 - 457.2 mm
Length	-	5.984 - 12 in
Length	-	152 - 203 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	5	5
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 5POS 1MM 12"

Part	Pitch [x]	Pitch [x]	Length	Length [x]	Number of Conductors	Termination Style	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Cable Type	Length [x]	Length
Parlex USA LLC 100R5-305B	0.039 in	1 mm	304.8 mm	12 in	5	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	FFC, FPC
Parlex USA LLC 100R5-152B	0.039 in	1 mm		5.984 in	5	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	FFC, FPC	152 mm
Parlex USA LLC 100R5-76B	0.039 in	1 mm	76.2 mm		5	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	FFC, FPC		3 in
Parlex USA LLC 100R5-457B	0.039 in	1 mm	457.2 mm		5	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	FFC, FPC		18 "
Parlex USA LLC 100R5-102B	0.039 in	1 mm	101.6 mm		5	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	FFC, FPC		4 in
Parlex USA LLC 100R5-254B	0.039 in	1 mm	254 mm	10 in	5	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	FFC, FPC
Parlex USA LLC 100R5-127B	0.039 in	1 mm	127 mm		5	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	FFC, FPC		5 in
Parlex USA LLC 100R5-51B	0.039 in	1 mm	50.8 mm		5	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	FFC, FPC		2 in
Parlex USA LLC 100R5-203B	0.039 in	1 mm		7.992 in	5	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	FFC, FPC	203 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position FFC, FPC Cable 0.039" (1.00mm) 4.000" (101.60mm)

Technical documentation and resources
