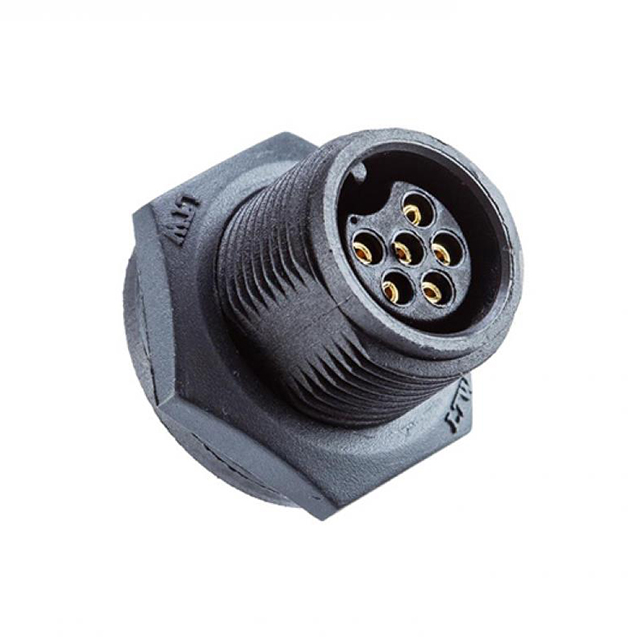

BBD-06PMFP-SC7001

Active

Amphenol LTW

CERES, STANDARD SIZE, 10A+5A, 06

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, STANDARD SIZE, 10A+5A, 06

Technical Specifications

Parameters and characteristics for this part

Specification	BBD-06PMFP-SC7001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5A, 10A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Voltage Rating	Contact Material	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Orientation	Connector Type	Insert Material	Shielding	Termination	Mounting Feature	Shell Size - Insert	Color	Mounting Type	Contact Finish - Mating	Number of Positions	Shell Material	Ingress Protection
Amphenol LTW BBD-06PMFP-SC7001	250 VDC	Copper Alloy	Plastic	-40 °C	105 ░C	10A 5A	Keyed	Receptacle Female Sockets	Polyamide (PA) Nylon Glass Filled	Unshielded	Solder	Bulkhead - Front Side Nut	B	Black	Panel Mount Through Hole	Gold	6	Glass Filled Nylon Polyamide (PA)	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder
