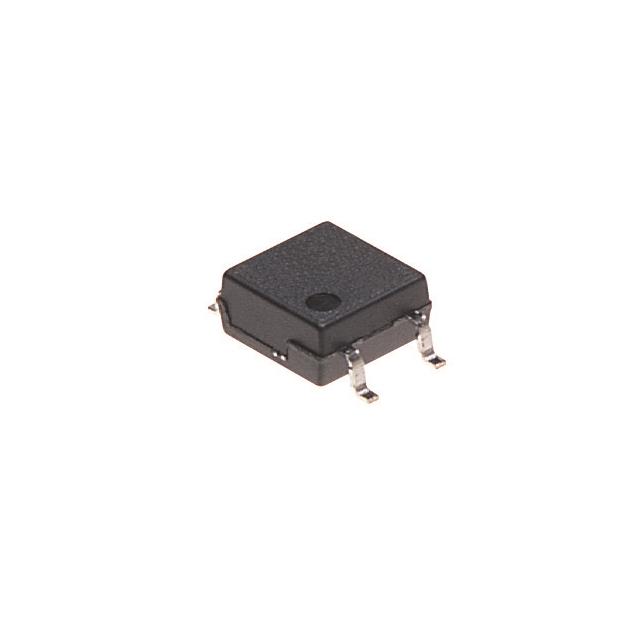

AQY282GSX
ActivePanasonic Electric Works
PHOTOMOS 60V 0.8A
Deep-Dive with AI
Search across all available documentation for this part.
AQY282GSX
ActivePanasonic Electric Works
PHOTOMOS 60V 0.8A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AQY282GSX |
|---|---|
| Approval Agency | BSI, cURus |
| Load Current | 800 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 800 mOhm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP |
| Termination Style | Gull Wing |
| Voltage - Input | 1.5 V |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.35 | |
| 10 | $ 3.14 | |||
| 25 | $ 2.79 | |||
| 50 | $ 2.65 | |||
| 100 | $ 2.51 | |||
| 250 | $ 2.23 | |||
| 500 | $ 2.09 | |||
| Digi-Reel® | 1 | $ 3.35 | ||
| 10 | $ 3.14 | |||
| 25 | $ 2.79 | |||
| 50 | $ 2.65 | |||
| 100 | $ 2.51 | |||
| 250 | $ 2.23 | |||
| 500 | $ 2.09 | |||
| Tape & Reel (TR) | 1000 | $ 1.95 | ||
| 3000 | $ 1.92 | |||
| 5000 | $ 1.88 | |||
Description
General part information
AQY282 Series
Solid State SPST-NO (1 Form A) 4-SMD, Gull Wing
Documents
Technical documentation and resources
No documents available
