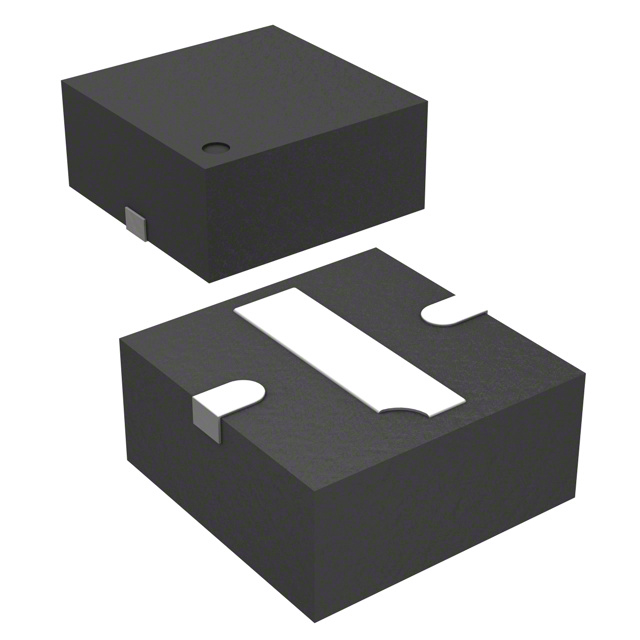

SMP1331-085LF
ActiveSkyworks Solutions Inc.
RF DIODE PIN 200V 2.5W 3QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMP1331-085LF
ActiveSkyworks Solutions Inc.
RF DIODE PIN 200V 2.5W 3QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMP1331-085LF |
|---|---|
| Capacitance @ Vr, F | 0.35 pF |
| Current - Max [Max] | 200 mA |
| Diode Type | PIN - Single |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-VDFN Exposed Pad |
| Power Dissipation (Max) [Max] | 2.5 W |
| Resistance @ If, F | 500 mOhm |
| Supplier Device Package | 3-QFN (2x2) |
| Voltage - Peak Reverse (Max) [Max] | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.54 | |
| 10 | $ 1.38 | |||
| 25 | $ 1.30 | |||
| 100 | $ 1.11 | |||
| 250 | $ 1.04 | |||
| 500 | $ 0.92 | |||
| Digi-Reel® | 1 | $ 1.54 | ||
| 10 | $ 1.38 | |||
| 25 | $ 1.30 | |||
| 100 | $ 1.11 | |||
| 250 | $ 1.04 | |||
| 500 | $ 0.92 | |||
| Tape & Reel (TR) | 3000 | $ 0.92 | ||
Description
General part information
SMP1331 Series
RF Diode PIN - Single 200V 200 mA 2.5 W 3-QFN (2x2)
