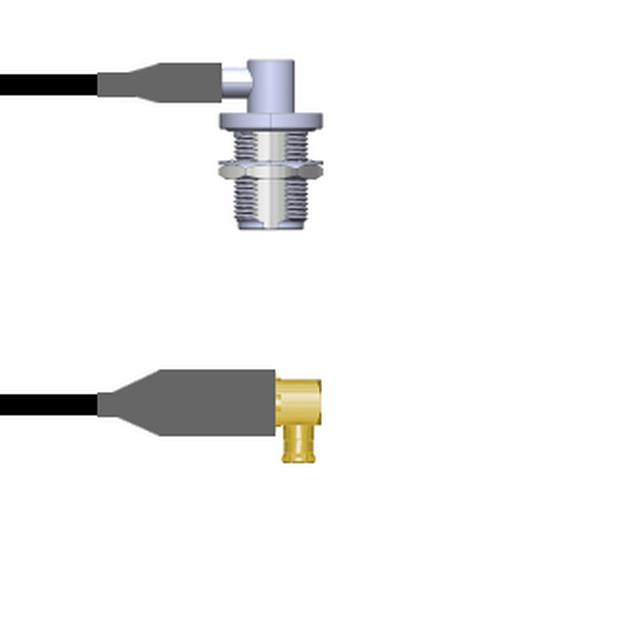

Q-1S0180008.25M

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE PL-JK 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1S0180008.25M

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE PL-JK 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1S0180008.25M

1st Connector	Right Angle, MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-1S0180 Series

Part	Cable Type	Length	Length	Length	2nd Connector	1st Connector Mounting Type	2nd Connector Mounting Type	Features	2nd Connector Mounting Feature	2nd Contact Gender	1st Connector	Color	Style	1st Contact Gender	Frequency - Max [Max]	Overall Impedance	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-1S01800082.5M	RG-58	8.2 '	98.4 in	2.5 m	N-Type Jack Right Angle	Free Hanging (In-Line)	Panel Mount	Shielded	Bulkhead - Front Side Nut	Female	MCX Plug Right Angle	Black	MCX to N-Type	Male	6000 MHz	50 Ohms
Amphenol Custom Cable Q-1S0180008036i	RG-58		36 in	91.44 cm	N-Type Jack Right Angle	Free Hanging (In-Line)	Panel Mount	Shielded	Bulkhead - Front Side Nut	Female	MCX Plug Right Angle	Black	MCX to N-Type	Male	6000 MHz	50 Ohms
Amphenol Custom Cable Q-1S0180008018i	RG-58				N-Type Jack Right Angle	Free Hanging (In-Line)	Panel Mount	Shielded	Bulkhead - Front Side Nut	Female	MCX Plug Right Angle	Black	MCX to N-Type	Male	6000 MHz	50 Ohms	457.2 mm	457.2 mm
Amphenol Custom Cable Q-1S0180008009i	RG-58		9 "	228.6 mm	N-Type Jack Right Angle	Free Hanging (In-Line)	Panel Mount	Shielded	Bulkhead - Front Side Nut	Female	MCX Plug Right Angle	Black	MCX to N-Type	Male	6000 MHz	50 Ohms
Amphenol Custom Cable Q-1S0180008003M	RG-58	9.8 '	118.1 in	3 m	N-Type Jack Right Angle	Free Hanging (In-Line)	Panel Mount	Shielded	Bulkhead - Front Side Nut	Female	MCX Plug Right Angle	Black	MCX to N-Type	Male	6000 MHz	50 Ohms
Amphenol Custom Cable Q-1S01800081.5M	RG-58	4.9 ft	59.1 in	1.5 m	N-Type Jack Right Angle	Free Hanging (In-Line)	Panel Mount	Shielded	Bulkhead - Front Side Nut	Female	MCX Plug Right Angle	Black	MCX to N-Type	Male	6000 MHz	50 Ohms
Amphenol Custom Cable Q-1S0180008024i	RG-58		24 "	609.6 mm	N-Type Jack Right Angle	Free Hanging (In-Line)	Panel Mount	Shielded	Bulkhead - Front Side Nut	Female	MCX Plug Right Angle	Black	MCX to N-Type	Male	6000 MHz	50 Ohms
Amphenol Custom Cable Q-1S0180008084i	RG-58	7 ft	84 in	2.1 m	N-Type Jack Right Angle	Free Hanging (In-Line)	Panel Mount	Shielded	Bulkhead - Front Side Nut	Female	MCX Plug Right Angle	Black	MCX to N-Type	Male	6000 MHz	50 Ohms
Amphenol Custom Cable Q-1S0180008.25M	RG-58				N-Type Jack Right Angle	Free Hanging (In-Line)	Panel Mount	Shielded	Bulkhead - Front Side Nut	Female	MCX Plug Right Angle	Black	MCX to N-Type	Male	6000 MHz	50 Ohms		250 mm	9.843 "
Amphenol Custom Cable Q-1S01800080.5M	RG-58		19.69 "	50 cm	N-Type Jack Right Angle	Free Hanging (In-Line)	Panel Mount	Shielded	Bulkhead - Front Side Nut	Female	MCX Plug Right Angle	Black	MCX to N-Type	Male	6000 MHz	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 125.84
		25	$ 123.45
		50	$ 121.06
		100	$ 118.67
		250	$ 116.28

Description

General part information

Q-1S0180 Series

Cable Assembly Coaxial MCX to N-Type RG-58 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
