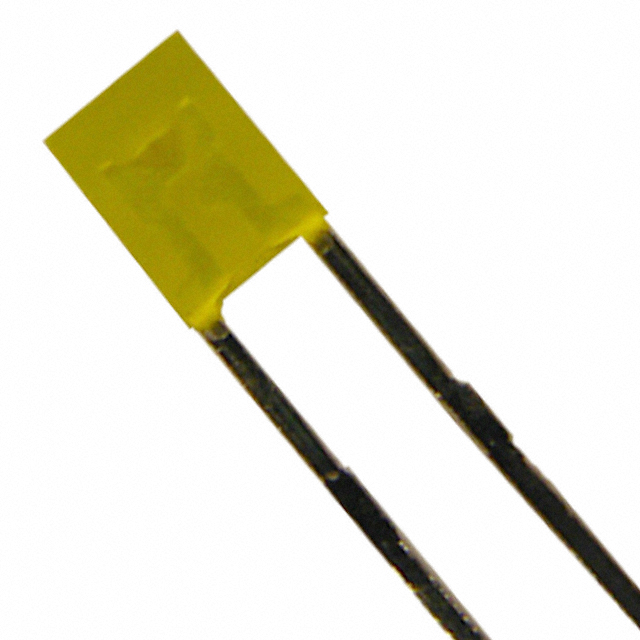

XSUY36D
ActiveSunLED
LED YL DIFFUSED RECTANGULAR T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XSUY36D
ActiveSunLED
LED YL DIFFUSED RECTANGULAR T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XSUY36D |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 10 mA |
| Height (Max) [Max] [z] | 4 mm |
| Lens Color | Yellow |
| Lens Size [x] | 3 mm |
| Lens Size [y] | 2 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 3.8 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | Rectangular |
| Viewing Angle | 100 ° |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength - Dominant | 588 nm |
| Wavelength - Peak | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.09 | |
Description
General part information
XSUY36 Series
Yellow 588nm LED Indication - Discrete 1.95V Radial
