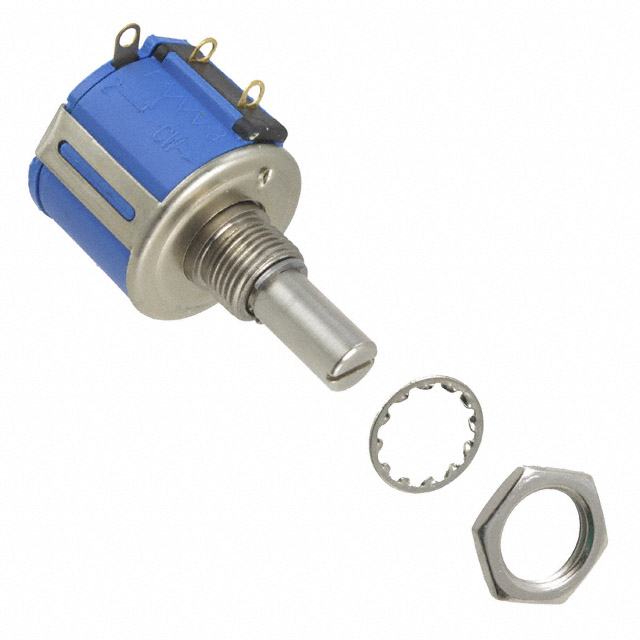

3545S-1-502L
ActiveBourns Inc.
POT 5K OHM 1.5W WIREWOUND LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3545S-1-502L
ActiveBourns Inc.
POT 5K OHM 1.5W WIREWOUND LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3545S-1-502L |
|---|---|
| Actuator Diameter [diameter] | 6.34 mm |
| Actuator Diameter [diameter] | 0.2497 in |
| Actuator Length [z] | 0.812 in |
| Actuator Length [z] | 20.63 mm |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | 3/8-32 |
| Number of Gangs | 1 |
| Number of Turns | 5 |
| Power (Watts) | 1.5 W |
| Resistance (Ohms) | 5 kOhms |
| Resistive Material | Wirewound |
| Rotation | 1800 ° |
| Size - Body [diameter] | 22.23 mm |
| Size - Body [diameter] | 0.875 " |
| Taper | Linear |
| Temperature Coefficient | 50 ppm/°C |
| Termination Style | Solder Lug |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 40.02 | |
| 10 | $ 36.20 | |||
| 25 | $ 33.55 | |||
Description
General part information
3545S Series
5k Ohm 1 Gang Linear Panel Mount Potentiometer 5.0 Turns Wirewound 1.5W Solder Lug
