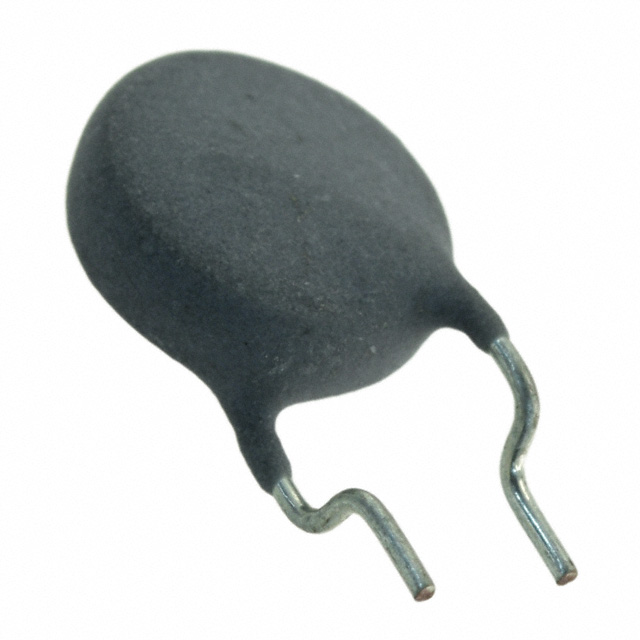

Specification	CMF-RL35-0

Approval Agency	UR
Current - Hold (Ih) (Max)	80 mA
Current - Max	3 A
Current - Trip (It)	220 mA
Height - Seated (Max)	0.532 in
Lead Spacing	0.2 in
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	Disc, Radial
Resistance - 25°C (Typ)	35 Ohms
Size / Dimension Length	0.386 in
Size / Dimension Width	0.197 in
Time to Trip	150 ms
Type	Ceramic
Voltage - Max	230 V
Voltage - Max (Int)	600 V

CMF-RL Series

Part	Approval Agency	Current - Trip (It)	Resistance - 25°C (Typ)	Voltage - Max	Voltage - Max (Int)	Operating Temperature (Max)	Operating Temperature (Min)	Current - Hold (Ih) (Max)	Current - Max	Size / Dimension Length	Size / Dimension Width	Mounting Type	Package / Case	Time to Trip	Height - Seated (Max)	Lead Spacing	Type
Bourns Inc. CMF-RL35A-10-0	UR	150 mA	35 Ohms	220 V	600 V	125 °C	-40 °C	75 mA	3 A	0.295 in	0.22 in	Through Hole	Disc Radial	150 ms	0.512 in	0.197 in	Ceramic
Bourns Inc. CMF-RL55-0	UR	150 mA	55 Ohms	220 V	600 V	125 °C	-40 °C	65 mA	3 A	0.386 in	0.197 in	Through Hole	Disc Radial	150 ms	0.532 in	0.2 in	Ceramic
Bourns Inc. CMF-RL50-10-0	UR	150 mA	50 Ohms	220 V	600 V	125 °C	-40 °C	65 mA	3 A	0.386 in	0.197 in	Through Hole	Disc Radial	150 ms	0.532 in	0.2 in	Ceramic
Bourns Inc. CMF-RL55-10-0	UR	150 mA	55 Ohms	220 V	600 V	125 °C	-40 °C	65 mA	3 A	0.386 in	0.197 in	Through Hole	Disc Radial	150 ms	0.532 in	0.2 in	Ceramic
Bourns Inc. CMF-RL35-0	UR	220 mA	35 Ohms	230 V	600 V	125 °C	-40 °C	80 mA	3 A	0.386 in	0.197 in	Through Hole	Disc Radial	150 ms	0.532 in	0.2 in	Ceramic
Bourns Inc. CMF-RL55A-0	UR	100 mA	55 Ohms	220 V	600 V	125 °C	-40 °C	50 mA	3 A	0.295 in	0.22 in	Through Hole	Disc Radial	100 ms	0.512 in	0.197 in	Ceramic
Bourns Inc. CMF-RL25U-0	UR	150 mA	25 Ohms	220 V	600 V	125 °C	-40 °C	60 mA	900 mA	0.205 in	0.138 in	Through Hole	Disc Radial	250 ms	0.205 in	0.197 in	Ceramic
Bourns Inc. CMF-RL25U-15-0	UR	150 mA	25 Ohms	220 V	600 V	125 °C	-40 °C	60 mA	900 mA	0.205 in	0.138 in	Through Hole	Disc Radial	250 ms	0.205 in	0.197 in	Ceramic
Bourns Inc. CMF-RL10-0	UR	300 mA	10 Ohms	220 V	600 V	125 °C	-40 °C	150 mA	3 A	0.374 in	0.177 in	Through Hole	Disc Radial	450 ms	0.532 in	0.197 in	Ceramic
