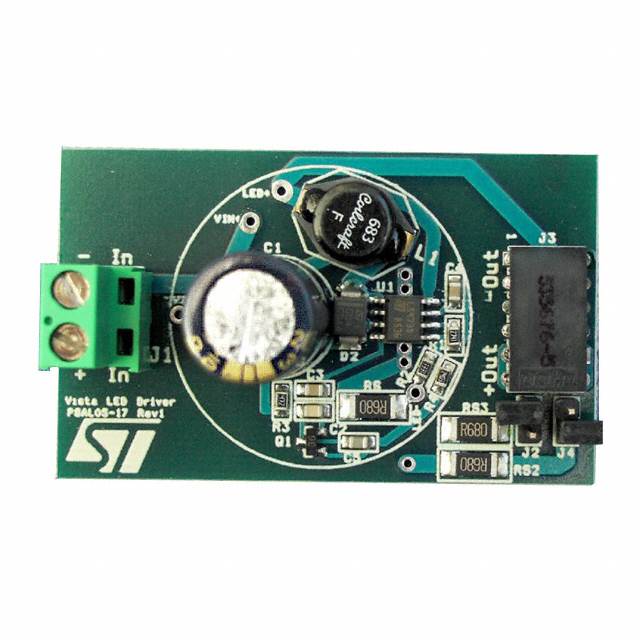

STEVAL-ILL007V1
ObsoleteSTMicroelectronics
EVAL BOARD FOR L5973D
STEVAL-ILL007V1
ObsoleteSTMicroelectronics
EVAL BOARD FOR L5973D
Description
General part information
L5973 Series
L5973 Outputs LED Driver Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-ILL007V1 |
|---|---|
| Contents | Board |
| Current - Output / Channel | 1.05 A, 350 mA, 700 mA |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Total Output Count | 1 |
| Utilized IC / Part | L5973 |
| Voltage - Input (Maximum) | 24 VAC |
| Voltage - Input (Minimum) | 6 V |
| Voltage - Input (Nominal) | 12 VAC |
| Voltage - Output | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
