1363301-1

Active

TE Connectivity AMP Connectors

CONN MCX PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MCX PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1363301-1

Body Finish	Nickel
Cable Group	RG-316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms

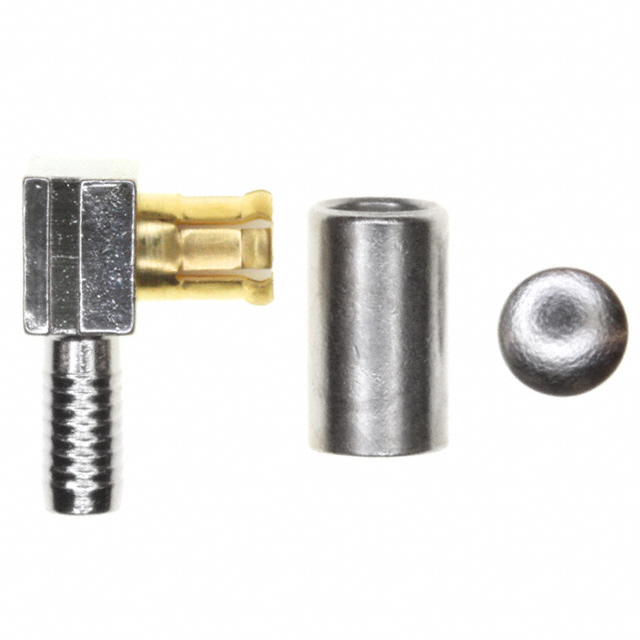

Includes	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

CONN MCX PLUG R/A 50 OHM SOLDER

Part	Connector Style	Mounting Type	Shield Termination	Includes	Housing Color	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Number of Ports	Frequency - Max [Max]	Contact Termination	Impedance	Body Finish	Insertion Loss	Center Contact Plating	Center Contact Material	Mating Cycles	Dielectric Material	Voltage Rating
TE Connectivity AMP Connectors 1363301-1	MCX	Free Hanging (In-Line), Right Angle	Crimp	1 Connector, 1 End Cap, 1 Ferrule	Silver	Snap-On	Male Pin, Plug	-65 ░C	165 °C	RG-316	1	6000 MHz	Solder	50 Ohms	Nickel	0.1 dB	Gold	Brass	500	Polytetrafluoroethylene (PTFE)	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
