103906-3
ActiveTE Connectivity AMP Connectors

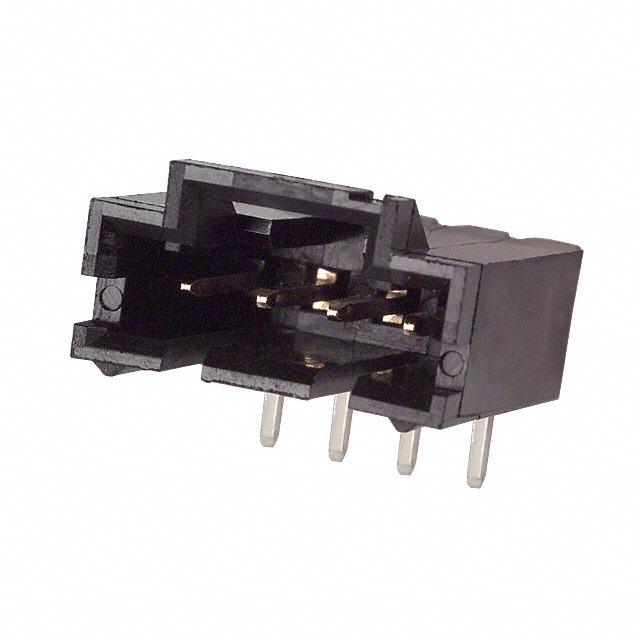

CONN HEADER R/A 4POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
103906-3
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 4POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 103906-3 | 103906 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post | 0.13 in | 0.13 in |
| Contact Length - Post | 3.3 mm | 3.3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 4 | 2 - 24 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.50 | |
| 10 | $ 1.24 | |||
| 100 | $ 1.03 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.85 | |||
| 5000 | $ 0.75 | |||
| 10000 | $ 0.71 | |||
103906 Series
CONN HEADER R/A 4POS 2.54MM
| Part | Insulation Color | Style | Mounting Type | Current Rating (Amps) | Shrouding | Contact Length - Mating [x] | Contact Length - Mating | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Insulation Material | Applications | Number of Rows | Termination | Contact Type | Material Flammability Rating | Fastening Type | Contact Finish - Post | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Post | Contact Length - Post | Features | Number of Positions Loaded | Connector Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 103906-3 | Black | Board to Board, Cable | Through Hole, Right Angle | 3 A | Shrouded - 4 Wall | 0.23 in | 5.84 mm | 4 | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Square | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | 1 | Solder | Male Pin | UL94 V-0 | Latch Holder | Tin-Lead | Brass | -65 ░C | 105 ░C | 2.54 µm | 100 µin | 0.13 in | 3.3 mm | Keying Slot | All | Header | Gold |
TE Connectivity AMP Connectors 1-103906-3 | Black | Board to Board, Cable | Through Hole, Right Angle | 3 A | Shrouded - 4 Wall | 0.23 in | 5.84 mm | 14 | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Square | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | 1 | Solder | Male Pin | UL94 V-0 | Latch Holder | Tin-Lead | Brass | -65 ░C | 105 ░C | 2.54 µm | 100 µin | 0.13 in | 3.3 mm | Keying Slot | All | Header | Gold |
TE Connectivity AMP Connectors 2-103906-3 | Black | Board to Board, Cable | Through Hole, Right Angle | 3 A | Shrouded - 4 Wall | 0.23 in | 5.84 mm | 24 | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Square | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | 1 | Solder | Male Pin | UL94 V-0 | Latch Holder | Tin-Lead | Brass | -65 ░C | 105 ░C | 2.54 µm | 100 µin | 0.13 in | 3.3 mm | Keying Slot | All | Header | Gold |
TE Connectivity AMP Connectors 1-103906-6 | Black | Board to Board, Cable | Through Hole, Right Angle | 3 A | Shrouded - 4 Wall | 0.23 in | 5.84 mm | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Square | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | 1 | Solder | Male Pin | UL94 V-0 | Latch Holder | Tin-Lead | Brass | -65 ░C | 105 ░C | 2.54 µm | 100 µin | 0.13 in | 3.3 mm | Keying Slot | All | Header | Gold | |
TE Connectivity AMP Connectors 103906-4 | Black | Board to Board, Cable | Through Hole, Right Angle | 3 A | Shrouded - 4 Wall | 0.23 in | 5.84 mm | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Square | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | 1 | Solder | Male Pin | UL94 V-0 | Latch Holder | Tin-Lead | Brass | -65 ░C | 105 ░C | 2.54 µm | 100 µin | 0.13 in | 3.3 mm | Keying Slot | All | Header | Gold | |
TE Connectivity AMP Connectors 103906-5 | Black | Board to Board, Cable | Through Hole, Right Angle | 3 A | Shrouded - 4 Wall | 0.23 in | 5.84 mm | 6 | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Square | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | 1 | Solder | Male Pin | UL94 V-0 | Latch Holder | Tin-Lead | Brass | -65 ░C | 105 ░C | 2.54 µm | 100 µin | 0.13 in | 3.3 mm | Keying Slot | All | Header | Gold |
TE Connectivity AMP Connectors 103906-1 | Black | Board to Board, Cable | Through Hole, Right Angle | 3 A | Shrouded - 4 Wall | 0.23 in | 5.84 mm | 2 | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Square | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | 1 | Solder | Male Pin | UL94 V-0 | Latch Holder | Tin-Lead | Brass | -65 ░C | 105 ░C | 2.54 µm | 100 µin | 0.13 in | 3.3 mm | Keying Slot | All | Header | Gold |
Description
General part information
103906 Series
Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
