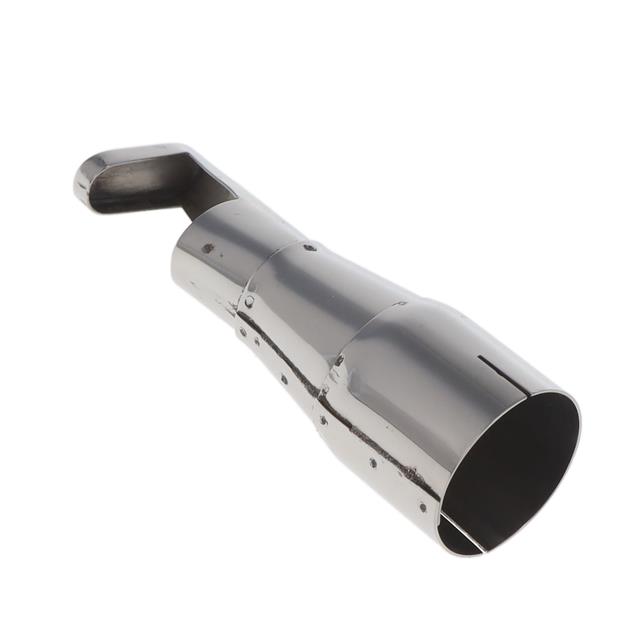

8-1197645-1
ActiveTE Connectivity AMP Connectors
PR-25D-REFLECTOR
8-1197645-1
ActiveTE Connectivity AMP Connectors
PR-25D-REFLECTOR
Description
General part information
1197645 Series
Discrete, Worldwide, Cable Assembly, Reflector, SolderSleeve Products, Heat Shrink Equipment
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-1197645-1 |
|---|---|
| Accessory Type | Reflector, Nozzle |
| Compatible Tools | HL1910E, HL2010E, CV-1981, CV-1983 |
| Contact Area (Max) | 0.5 " |
| Contact Area (Min) | 0.25 " |
| For Use With/Related Products | SolderSleeve Products from 0.25", SolderSleeve Products |
| For Use With/Related Products Maximum Width | 0.5 in |
