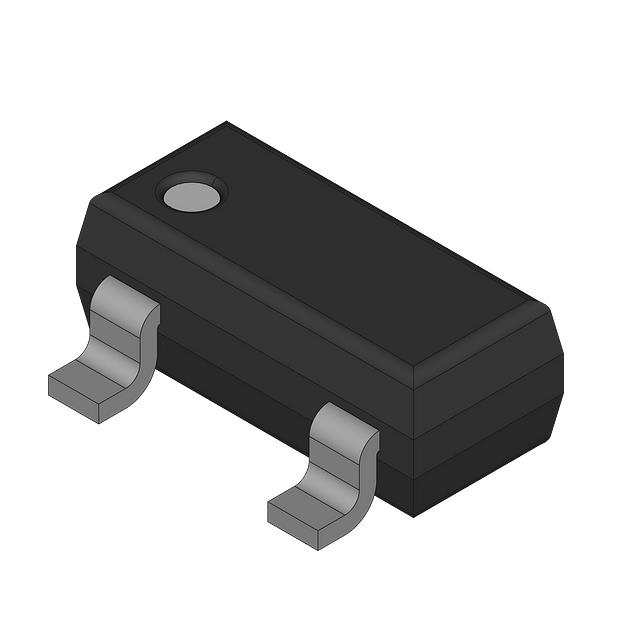

BAV74

Active

Siemens

DIODE ARRAY GP 50V 200MA SOT23-3

Search across all available documentation for this part.

Active

Siemens

DIODE ARRAY GP 50V 200MA SOT23-3

Technical Specifications

Parameters and characteristics for this part

Specification	BAV74

Current - Average Rectified (Io) (per Diode)	200 mA
Current - Reverse Leakage @ Vr	100 nA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Surface Mount
Operating Temperature - Junction	150 ¯C
Package / Case	SOT-23-3, TO-236-3, SC-59
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOT-23-3
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	50 V
Voltage - Forward (Vf) (Max) @ If	1.25 V

DIODE ARRAY GP 50V 200MA SOT23-3

Part	Mounting Type	Technology	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Diode Configuration	Voltage - Forward (Vf) (Max) @ If	Package / Case	Speed	Speed	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction	Voltage - DC Reverse (Vr) (Max) [Max]
Siemens BAV74	Surface Mount	Standard	100 nA	4 ns	1 Pair Common Cathode	1.25 V	SC-59, SOT-23-3, TO-236-3	Any Speed	200 mA	SOT-23-3	200 mA	150 ¯C	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6918	$ 0.04

General part information

Diode Array 1 Pair Common Cathode 50 V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3

Technical documentation and resources

No documents available
