4964-SS-240

Active

Pomona Electronics

RF / COAXIAL CABLE ASSEMBLY, BNC STRAIGHT PLUG, BNC STRAIGHT PLUG, 50 OHM, 20 FT, 6.1 M

Find alt

Alpha

4964-SS-240

Active

Pomona Electronics

RF / COAXIAL CABLE ASSEMBLY, BNC STRAIGHT PLUG, BNC STRAIGHT PLUG, 50 OHM, 20 FT, 6.1 M

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

4964 Series

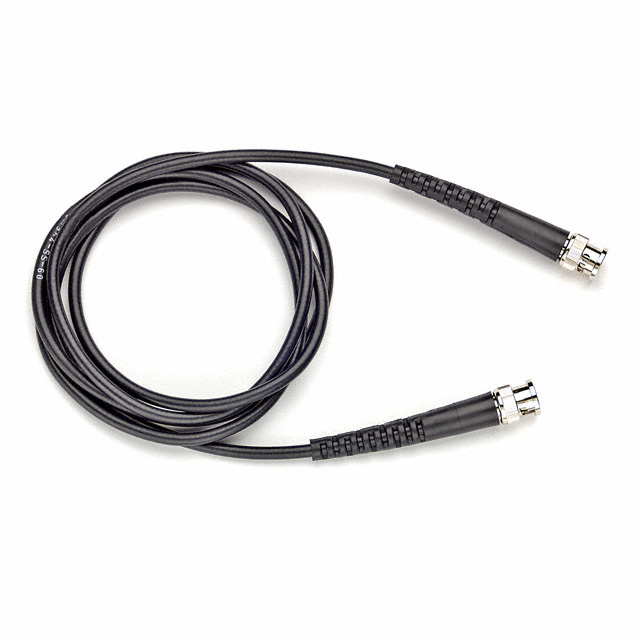

The 4964-SS-240 is a 240-inch RG316/U RF Coaxial Cable Assembly with BNC straight plug to BNC straight plug connection. It has gold-plated brass centre contact and also has PTFE dielectric, the PVC molded directly to cable and connectors strain relief. It uses a special low-triboelectric cable which has noise attenuating layers surrounding the centre conductor and the cable is ideal for low power, low frequency measurements.

Technical Specifications

Parameters and characteristics for this part

Specification	4964-SS-240

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Outer Diameter	4.95 mm
Cable Type	Coaxial Cable, 4.95mm OD Coaxial Cable, mm OD Coaxial Cable
Cable Type Size	4.95
Color	Black
Features	Shielded
Frequency - Max	10 kHz
Length	240 in
Operating Temperature	50 °C
Overall Impedance	50 Ohms
Style	BNC

4964 Series

Part	2nd Connector Mounting Type	Cable Type Size	Cable Type	Cable Outer Diameter	2nd Contact Gender	Overall Impedance	Frequency - Max	Style	1st Connector Mounting Type	Operating Temperature	1st Contact Gender	1st Connector	Features	Length	Color	2nd Connector	Length (ft)
Pomona Electronics 4964-SS-48	Free Hanging (In-Line)	4.95	4.95mm OD Coaxial Cable Coaxial Cable mm OD Coaxial Cable	4.95 mm	Male	50 Ohms	10 kHz	BNC	Free Hanging (In-Line)	50 °C	Male	BNC Plug	Shielded	48 in	Black	BNC Plug
Pomona Electronics 4964-SS-420	Free Hanging (In-Line)	4.95	4.95mm OD Coaxial Cable Coaxial Cable mm OD Coaxial Cable	4.95 mm	Male	50 Ohms	10 kHz	BNC	Free Hanging (In-Line)	50 °C	Male	BNC Plug	Shielded	35 ft	Black	BNC Plug
Pomona Electronics 4964-SS-12	Free Hanging (In-Line)	4.95	4.95mm OD Coaxial Cable Coaxial Cable mm OD Coaxial Cable	4.95 mm	Male	50 Ohms	10 kHz	BNC	Free Hanging (In-Line)	50 °C	Male	BNC Plug	Shielded	12 in	Black	BNC Plug
Pomona Electronics 4964-SS-240	Free Hanging (In-Line)	4.95	4.95mm OD Coaxial Cable Coaxial Cable mm OD Coaxial Cable	4.95 mm	Male	50 Ohms	10 kHz	BNC	Free Hanging (In-Line)	50 °C	Male	BNC Plug	Shielded	240 in	Black	BNC Plug
Pomona Electronics 4964-SS-120	Free Hanging (In-Line)	4.95	4.95mm OD Coaxial Cable Coaxial Cable mm OD Coaxial Cable	4.95 mm	Male	50 Ohms	10 kHz	BNC	Free Hanging (In-Line)	50 °C	Male	BNC Plug	Shielded	120 in	Black	BNC Plug
Pomona Electronics 4964-SS-36	Free Hanging (In-Line)	4.95	4.95mm OD Coaxial Cable Coaxial Cable mm OD Coaxial Cable	4.95 mm	Male	50 Ohms	10 kHz	BNC	Free Hanging (In-Line)	50 °C	Male	BNC Plug	Shielded	36 in	Black	BNC Plug
Pomona Electronics 4964-SS-60	Free Hanging (In-Line)	4.95	4.95mm OD Coaxial Cable Coaxial Cable mm OD Coaxial Cable	4.95 mm	Male	50 Ohms	10 kHz	BNC	Free Hanging (In-Line)	50 °C	Male	BNC Plug	Shielded	1524 mm	Black	BNC Plug	5 ft
Pomona Electronics 4964-SS-72	Free Hanging (In-Line)	4.95	4.95mm OD Coaxial Cable Coaxial Cable mm OD Coaxial Cable	4.95 mm	Male	50 Ohms	10 kHz	BNC	Free Hanging (In-Line)	50 °C	Male	BNC Plug	Shielded	72 in	Black	BNC Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN
