BQ25756ERRVR
ActiveSTAND-ALONE OR I²C-CONTROLLED BIDIRECTIONAL BUCK-BOOST CHARGE CONTROLLER FOR UP TO 7S BATTERIES
Deep-Dive with AI
Search across all available documentation for this part.
BQ25756ERRVR
ActiveSTAND-ALONE OR I²C-CONTROLLED BIDIRECTIONAL BUCK-BOOST CHARGE CONTROLLER FOR UP TO 7S BATTERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BQ25756ERRVR |
|---|---|
| Battery Chemistry | Multi-Chemistry |
| Battery Pack Voltage [Max] | 36 V |
| Charge Current - Max [Max] | 20 A |
| Current - Charging | Constant - Programmable |
| Fault Protection | Over Temperature, Short Circuit, Over Current, Over-Under Voltage |
| Interface | I2C |
| Mounting Type | Surface Mount |
| Number of Cells [Max] | 7 |
| Number of Cells [Min] | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

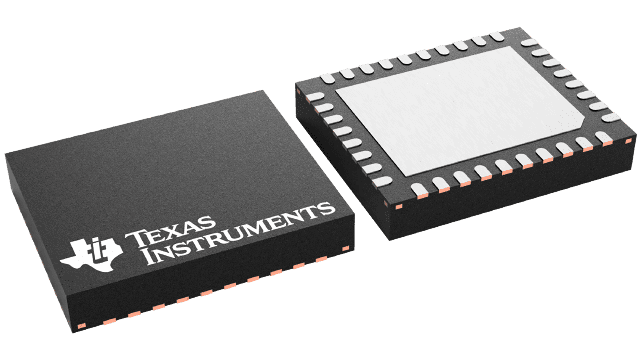

| Package / Case | 36-VFQFN Exposed Pad |
| Programmable Features | Current, Timer, Voltage |
| Voltage - Supply (Max) [Max] | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | 1 | $ 6.39 | |
| 10 | $ 4.91 | |||
| 25 | $ 4.54 | |||
| 100 | $ 4.14 | |||
| 250 | $ 3.94 | |||
| 500 | $ 3.83 | |||
| 1000 | $ 3.73 | |||
| 3000 | $ 3.61 | |||
| Digikey | Cut Tape (CT) | 1 | $ 6.47 | |
| 10 | $ 5.84 | |||
| 25 | $ 5.57 | |||
| 100 | $ 4.84 | |||
| 250 | $ 4.62 | |||
| 500 | $ 4.21 | |||
| 1000 | $ 3.67 | |||
| Digi-Reel® | 1 | $ 6.47 | ||
| 10 | $ 5.84 | |||
| 25 | $ 5.57 | |||
| 100 | $ 4.84 | |||
| 250 | $ 4.62 | |||
| 500 | $ 4.21 | |||
| 1000 | $ 3.67 | |||
| Tape & Reel (TR) | 3000 | $ 3.53 | ||
| Mouser Electronics | N/A | 1 | $ 6.39 | |
| 10 | $ 4.92 | |||
| 25 | $ 4.55 | |||
| 100 | $ 4.14 | |||
| 250 | $ 3.95 | |||
| 500 | $ 3.83 | |||
| 1000 | $ 3.73 | |||
| Texas Instruments | LARGE T&R | 1 | $ 4.95 | |
| 100 | $ 4.04 | |||
| 250 | $ 3.17 | |||
| 1000 | $ 2.69 | |||
BQ25756E Series
Stand-alone or I²C-controlled bidirectional buck-boost charge controller for up to 7S batteries
| Part | Package / Case | Fault Protection | Current - Charging | Charge Current - Max [Max] | Battery Chemistry | Interface | Mounting Type | Battery Pack Voltage [Max] | Programmable Features | Voltage - Supply (Max) [Max] | Number of Cells [Min] | Number of Cells [Max] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ25756ERRVR | 36-VFQFN Exposed Pad | Over Current, Over Temperature, Over-Under Voltage, Short Circuit | Constant - Programmable | 20 A | Multi-Chemistry | I2C | Surface Mount | 36 V | Current, Timer, Voltage | 36 V | 1 | 7 | -40 °C | 85 °C |
Description
General part information
BQ25756E Series
The BQ25756E is a wide input voltage, switched-mode buck-boost Li-Ion, Li-polymer, or LiFePO 4 battery charge controller with bidirectional power flow support. The device offers high-efficiency battery charging over a wide voltage range with accurate charge current and charge voltage regulation, in addition to automatic charge preconditioning, termination, and charge status indication. The device integrates all the loop compensation for the buck-boost converter, thereby providing a high density solution with ease of use. In reverse mode, the device draws power from the battery and regulates the input terminal voltage with an added constant current limit for protection, supporting USB-PD EPR power profile.
Besides the I 2C host-controlled charging mode, the device also supports standalone charging mode via resistor programmable limits. Input current, charge current and charge voltage regulation targets can be set via the ILIM_HIZ, ICHG and FB pins, respectively.
The BQ25756E is a wide input voltage, switched-mode buck-boost Li-Ion, Li-polymer, or LiFePO 4 battery charge controller with bidirectional power flow support. The device offers high-efficiency battery charging over a wide voltage range with accurate charge current and charge voltage regulation, in addition to automatic charge preconditioning, termination, and charge status indication. The device integrates all the loop compensation for the buck-boost converter, thereby providing a high density solution with ease of use. In reverse mode, the device draws power from the battery and regulates the input terminal voltage with an added constant current limit for protection, supporting USB-PD EPR power profile.
