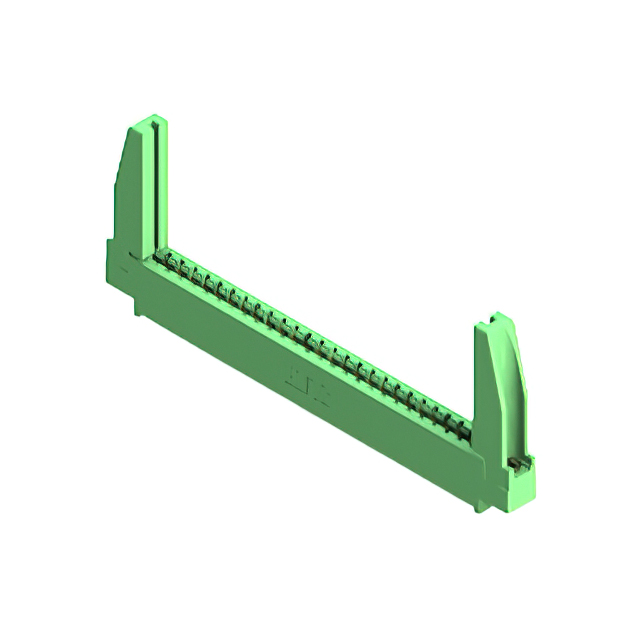

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 26 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

337-026-521-678

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 26 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	337-026-521-678

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	26
Number of Positions/Bay/Row [custom]	26
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

337-026 Series

...

Part	Flange Feature	Number of Positions/Bay/Row [custom]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Gender	Contact Type	Pitch [x]	Pitch [x]	Color	Material - Insulation	Termination Rows	Card Type	Number of Positions	Mounting Type	Features	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 337-026-559-808	4-40 Threaded Insert Top Mount Opening	13	Copper Alloy	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	2	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	Female	Cantilever	0.156 in	3.96 mm	Green	Polyester Thermoplastic	2	Non Specified - Dual Edge	26	Through Hole Right Angle
EDAC Inc. 337-026-555-807	M3 Threaded Insert Top Mount Opening	13	Copper Alloy	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	2	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Female	Cantilever	0.156 in	3.96 mm	Green	Polyester Thermoplastic	2	Non Specified - Dual Edge	26	Board Edge Straddle Mount	Card Extender
EDAC Inc. 337-026-521-678	4-40 Threaded Insert Top Mount Opening	26	Copper Alloy	-40 °C	105 ░C	Single	10 Áin	0.25 Ám	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Female	Cantilever	0.156 in	3.96 mm	Green	Polyester Thermoplastic	1	Non Specified - Single Edge	26	Through Hole	Card Guides
EDAC Inc. 337-026-524-202	Flush Mount Top Opening Unthreaded	13	Copper Alloy	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	2	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Female	Cantilever	0.156 in	3.96 mm	Green	Polyester Thermoplastic	2	Non Specified - Dual Edge	26	Through Hole		3.25 mm	0.128 "
EDAC Inc. 337-026-521-658	4-40 Threaded Insert Top Mount Opening	26	Copper Alloy	-40 °C	105 ░C	Single	10 Áin	0.25 Ám	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Female	Cantilever	0.156 in	3.96 mm	Green	Polyester Thermoplastic	1	Non Specified - Single Edge	26	Through Hole
EDAC Inc. 337-026-523-812	Side Mount Opening Unthreaded	13	Copper Alloy	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	2	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Female	Cantilever	0.156 in	3.96 mm	Green	Polyester Thermoplastic	2	Non Specified - Dual Edge	26	Through Hole				3.25 mm	0.128 in
EDAC Inc. 337-026-540-603	Floating Bobbin Top Mount Opening	26	Copper Alloy	-40 °C	105 ░C	Single	10 Áin	0.25 Ám	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	Female	Cantilever	0.156 in	3.96 mm	Green	Polyester Thermoplastic	1	Non Specified - Single Edge	26	Through Hole		2.95 mm	0.116 in
EDAC Inc. 337-026-523-268	4-40 Flush Mount Threaded Insert Top Opening	13	Copper Alloy	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	2	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Female	Cantilever	0.156 in	3.96 mm	Green	Polyester Thermoplastic	2	Non Specified - Dual Edge	26	Through Hole	Card Guides
EDAC Inc. 337-026-544-808	4-40 Threaded Insert Top Mount Opening	13	Copper Alloy	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	2	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	Female	Cantilever	0.156 in	3.96 mm	Green	Polyester Thermoplastic	2	Non Specified - Dual Edge	26	Through Hole
EDAC Inc. 337-026-558-101		26	Copper Alloy	-40 °C	105 ░C	Single	10 Áin	0.25 Ám	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	Female	Cantilever	0.156 in	3.96 mm	Green	Polyester Thermoplastic	1	Non Specified - Single Edge	26	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 11.48
Newark	Each	25	$ 11.37
		50	$ 10.79
		100	$ 10.21
		250	$ 9.62

Description

General part information

337-026 Series

26 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
