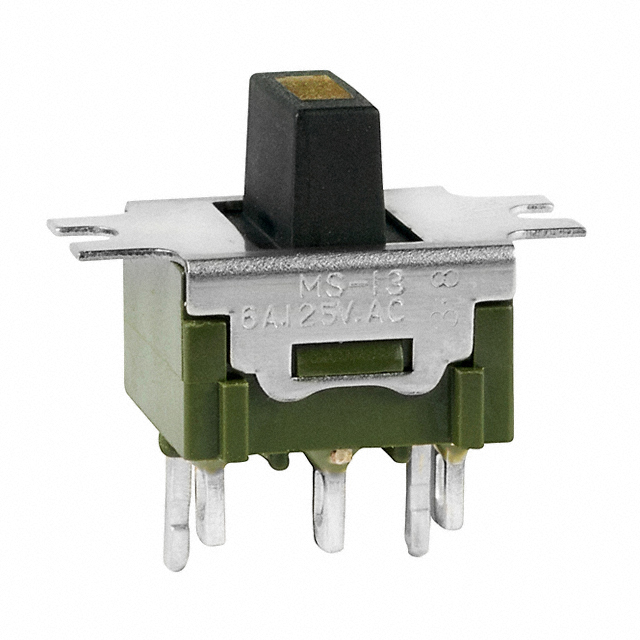

MS13LFW01E

Obsolete

NKK Switches

SWITCH SLIDE SPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH SLIDE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	MS13LFW01E

Actuator Length [z]	5.1 mm
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Type	Illuminated
Circuit	SPDT
Contact Finish	Silver
Contact Material	Silver Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off-On
Switch Travel	3.5 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Mechanical Life	Features	Circuit	Electrical Life	Current Rating (Amps)	Termination Style	Contact Material	Actuator Length [z]	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Switch Travel	Switch Function	Contact Timing	Actuator Type	Actuator Material
NKK Switches MS13LFW01E	100000 Cycles	Epoxy Sealed Terminals	SPDT	25000 Steps	6 A	Solder Lug	Silver Alloy	5.1 mm	Silver	-30 ░C	85 °C	125 V	3.5 mm	On-Off-On	Non-Shorting	Illuminated	Polybutylene Terephthalate (PBT) Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch SPDT Panel Mount
