1825258-2

Active

TE Connectivity Raychem Cable Protection

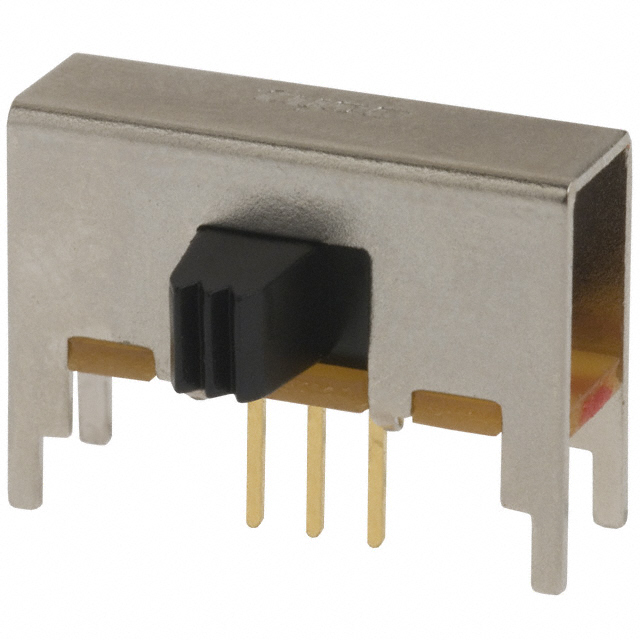

SWITCH SLIDE ON NONE ON SPDT SIDE SLIDE 20VAC 20VDC 0.4VA PC PINS BRACKET MOUNT/THROUGH HOLE TRAY

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE ON NONE ON SPDT SIDE SLIDE 20VAC 20VDC 0.4VA PC PINS BRACKET MOUNT/THROUGH HOLE TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	1825258-2

Actuator Length [x]	4 mm
Actuator Material	Polyoxymethylene (Acetal) (POM)
Actuator Type	Standard
Circuit	SPDT
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Timing	Shorting
Current Rating (Amps)	0.4 VA
Electrical Life	15000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	15000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	600 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Switch Travel	2 mm
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Voltage Rating - DC	Contact Material	Actuator Type	Electrical Life	Voltage Rating - AC	Switch Travel	Termination Style	Mechanical Life	Contact Timing	Circuit	Actuator Length [x]	Features	Operating Force	Current Rating (Amps)	Switch Function	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Mounting Type
TE Connectivity Raychem Cable Protection 1825257-2	20 V	Copper Alloy	Standard	15000 Cycles	20 V	2 mm	PC Pin	15000 Cycles	Shorting	SPDT	5 mm	Epoxy Sealed Terminals	600 gf	0.4 VA	On-On	Gold	85 °C	-20 C	Polyoxymethylene (Acetal) (POM)	Through Hole
TE Connectivity Raychem Cable Protection 1825258-2	20 V	Copper Alloy	Standard	15000 Cycles	20 V	2 mm	PC Pin	15000 Cycles	Shorting	SPDT	4 mm	Epoxy Sealed Terminals	600 gf	0.4 VA	On-On	Gold	85 °C	-20 C	Polyoxymethylene (Acetal) (POM)	Through Hole Right Angle
TE Connectivity Raychem Cable Protection 1825266-1		Copper Alloy	Standard	15000 Cycles	125 V	2 mm	PC Pin	15000 Cycles	Shorting	4PDT	12 mm	Epoxy Sealed Terminals	600 gf	300 mA	On-On	Silver	85 °C	-20 C	Polyoxymethylene (Acetal) (POM)	Through Hole
TE Connectivity Raychem Cable Protection 1825261-1		Copper Alloy	Standard	15000 Cycles	125 V	2 mm	PC Pin	15000 Cycles	Shorting	DPDT	2.3 mm	Epoxy Sealed Terminals	600 gf	300 mA	On-On	Silver	85 °C	-20 C	Polyoxymethylene (Acetal) (POM)	Through Hole
TE Connectivity Raychem Cable Protection 1825257-1		Copper Alloy	Standard	15000 Cycles	125 V	2 mm	PC Pin	15000 Cycles	Shorting	SPDT	5 mm	Epoxy Sealed Terminals	600 gf	300 mA	On-On	Silver	85 °C	-20 C	Polyoxymethylene (Acetal) (POM)	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

.4 A Slide Switch, Single Pole - Double Throw, Right Angle, Copper Alloy, Single Actuator, 2 Position, On None On, 20 VDC, ALCOSWITCH MSS
